CHAINFLEX

Chainflex Cut to Length, Order by the Foot (Example- To Order 10 ft., Order Quantity Must be 10) Unshielded Tr

Hover over image to magnify

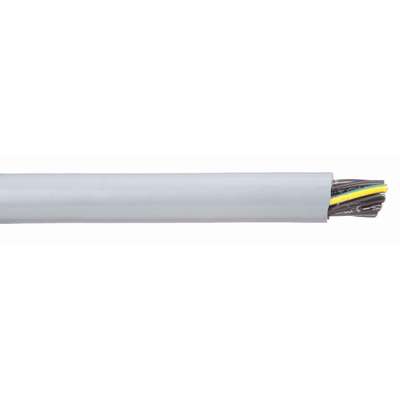

Continuous Flexing Tray Cable,
PI_Asset_1353870
Continuous Flexing Tray Cable,
PI_Asset_1353870

#916185-7 | Pkg Qty: 1

$12.21 pkg | $12.21 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
CHAINFLEX
Mfr. Part Number
CF130US-25-12
Cable Type
Continuous Flexing
Nominal Outside Diameter
0.62 in.
Cable/Wire Type
Continuous Flexing
Number of Conductors
12
Color Code
1 Conductor is Green/Yellow, Remaining Conductors are Black with White Numbers
Package Quantity
1
Color Family
Gray
Shielded/Unshielded
Unshielded
Conductor Material
Bare Copper
Shielding
Unshielded
Description/Special Features
Minimum Bend Radius for Flexing 8 x O.D., Oil Resistant and Flame Resistant
Shipping Weight
1.27 lb.
Gauge/Conductor
14/12
Spool/Coil Length
Cut to Length, Order by the Foot (Example- To Order 10 Ft, Order Quantity Must be 10)
Item
Continuous Flexing Tray Cable
Temperature Range
23 deg. F to 176 deg. F
Jacket Color
Gray
Voltage
600 V
Jacket Material
PVC
Wire Color
Black with White Numbers, (1) Green/Yellow
Jacket Type
PVC
Wire Size
14 AWG
Maximum Amps
13
Wire and Cable Item
Tray Cable
Maximum Voltage
600 V
Wire/Cable Jacket Material
PVC
General
Cable Type - Wire and Cable
Continuous Flexing
Shielded / Unshielded
Unshielded
Features
Oil Resistant and Flame Resistant
Special Features
Oil Resistant and Flame Resistant
Jacket Material - Wire and Cable
PVC
Standards
UL TC/ MTW CSA AWM FT4/ CE
Min. Bend Radius
8 x OD
Wire Size - Wire and Cable
14 AWG

Product Description

Continuous flexing tray cable is electrical wire that connects a main power source to a machine or piece of equipment in automated systems. It is used in cable carriers, or trays, to support and guide cable through motion. This power cable has a tough jacket that is resistant to abrasion, oil, and flames. It is commonly used in power distribution, control, and instrumentation applications in manufacturing and industrial environments.

Continuous flexing automation cable is electrical cable that can withstand repetitive motion and constant bending without damage. It is commonly used in automated systems with constant movement, such as robotics or conveyors, to connect power from a main source to a machine or machine component. It has one or more insulated conductors and a flexible jacket that is oil-, flame-, and coolant-resistant. It is often used in conjunction with cable carriers, or trays, to support and guide cable through motion. Automation cable is suitable for construction, manufacturing, robotics, and power distribution applications.

Item Barcode
9161857
Continuous Flexing Tray Cable,
 NameItemDescription
Grainger DropshipGrainger Dropship2TZE3Continuous Flexing Tray
UNSPSC CODESUNSPSC CODES26121629
VMRS (ATA) CODESVMRS (ATA) CODES053-007-002Continuous Flexing Tray
