INGERSOLL RAND

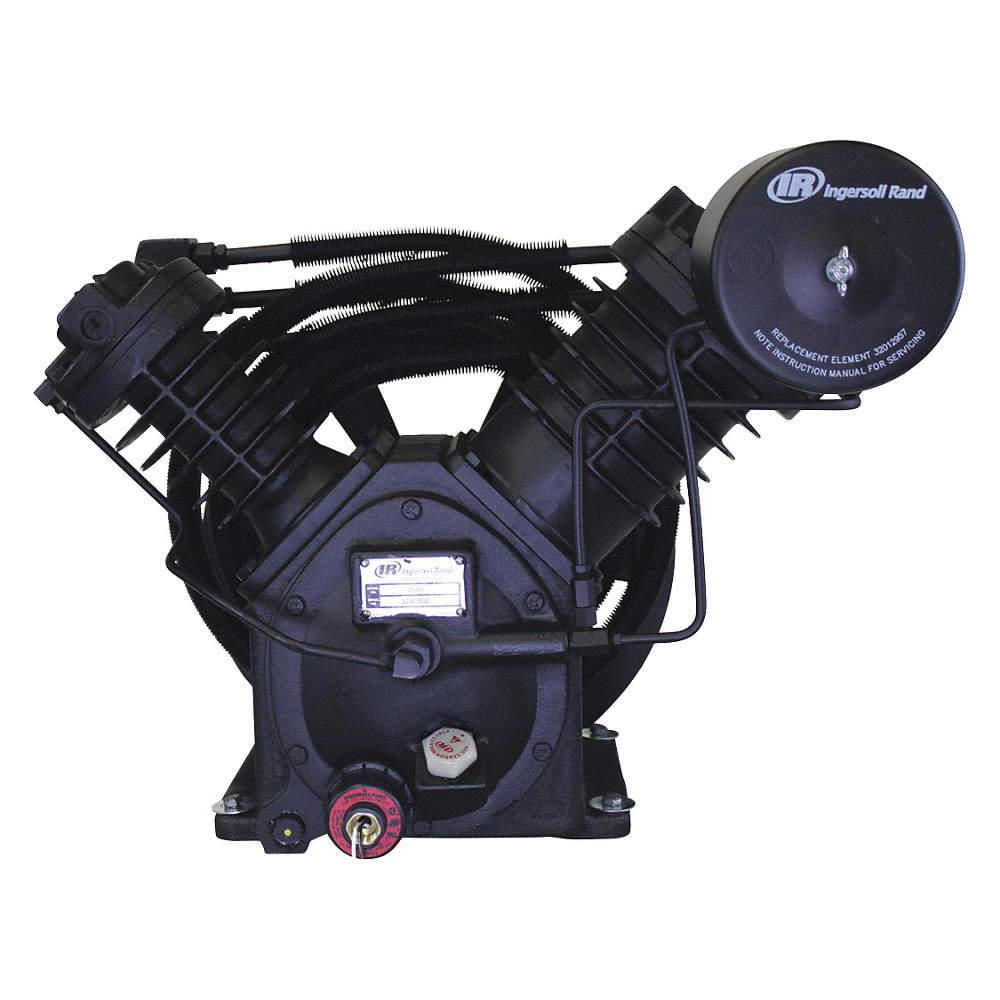

2-Stage Splash Lubricated Air Compressor Pump with 74 oz. Oil Capacity

Hover over image to magnify
Air Compressor Pump,2 Stage
Air Compressor Pump,2 Stage
2-Stage Splash Lubricated Air Compressor Pump with 74 oz. Oil Capacity Video
Double tap image to magnify
Air Compressor Pump,2 Stage
Air Compressor Pump,2 Stage
zQaoTqu4xh4

#916162-5Pkg Qty: 1

$4,037.25 pkg | $4,037.25 ea
This item requires special shipping, additional charges may apply.

In Stock

Shipping to 43085
Expected to arrive Mon. Mar 31.
|

Technical Specifications

Key Specifications
(F)NPT Outlet
3/4 in.
Oil Capacity
74 oz.
Brand
INGERSOLL RAND
Overall Depth
25-13/16 in.
Construction
Cast Iron
Overall Height
20-13/16 in.
Flywheel Diameter
17-39/64 in.
Overall Width
27-5/8 in.
Free Air CFM @ Max Pressure
26.2/35.0
Package Quantity
1
Groove Quantity
1
Pump RPM
825, 1050
Horsepower
7-1/2, 10 HP
Rotation
CW
Item
Air Compressor Pump
Sheave Size @ 1725 RPM
5-3/4 in., 8-61/64 in., 11-23/64 in.
Lubrication Type
Splash Lubricated
Shipping Weight
291 lb.
Maximum Pressure
175 psi
Stroke Length
3-1/2 in.
Mfr. Part Number
2545
Type
Splash Lubricated, Type 30 Air Compressor
Number of Cylinders
2
Valve
Inlet/Outlet Finger, Provides Superior Service for Longer Life
Number of Stages
2
Valve Type
Finger
General
Bore Dia.
2 3/4 in, 5 in
Maximum Output Power
7.5 hp, 10 hp
Flywheel Included
Yes
Mounting Pattern
11-3/4 in W x 8-1/2 in D
Free Air CFM @ Max. Pressure
26.2/35.0
Number of Grooves
1
Free Air Flow Rate @ Maximum Pressure
35.0 cfm @ 175 psi
Outlet Connection Type
NPT
HP
7 1/2 hp, 10 hp
Pump Speed
1,050 RPM
Lubrication Required
Yes

Product Description

Durable, cast-iron cylinder, head, and frame are designed for continuous operation and extended pump life. Overhung crankshaft is precision balanced to run smoothly and quietly. 1-pc. connecting rod. Cylinder can be removed for easy repair and service..
