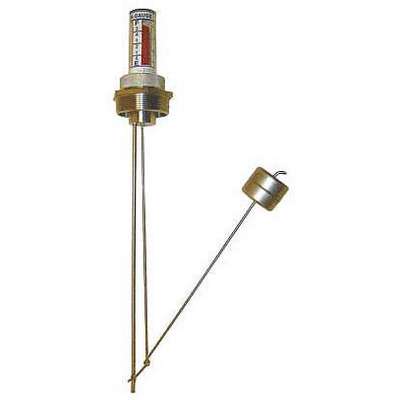

At-A-Glance Level Gauge: For 30 in Container Dp, 2 in, 316 Stainless Steel / 304 Stainless Steel

Hover over image to magnify
Therma Level Gauge,Tank Depth
Therma Level Gauge,Tank Depth

#916122-3 | Pkg Qty: 1

$337.18 pkg | $337.18 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
AT-A-GLANCE
Mfr. Part Number
H-2-30-ALLSS
Calibration Increments
1/8s of a Tank
Mfr. Warranty Length
1 yr.
Connection Size
2 in. NPT
Package Quantity
1
Float Diameter
1-3/8 in.
Rivet Material
Stainless Steel
Float Material
Stainless Steel
Shipping Weight
1.3 lb.
Gasket Material
Duro Nitrile
Tank Depth
30 in.
Item
Level Gauge
General
Assembly Nut Material
Aluminum
Graduation Marks
Empty; Full; 1/8 Increments
Bushing Material
Stainless Steel
Increment of Variation
Primary 1/4, Secondary 1/8
Calibration Unit Increments
1/8s of a Tank
Manufacturer Warranty Length
1 yr
Calibration Unit Material
Inner Glass, Outer Plastic
Maximum Operating Pressure
70 psi
Container Compatibility
No Exact Capacity No Specific Style
Maximum Temperature
200 °F
Extension Length
0 in
Minimum Temperature
-20 °F
Float Dia.
1 3/8 in
Pipe Size
2 in
Float Rod Material
316 Stainless Steel
Rod Material
316 Stainless
For Container Capacity
No Exact Capacity
Rod/Float Material
316 Stainless Steel / 304 Stainless Steel
For Container Depth
30 in
Temp. Range
-20° to 200°F
For Container Type
No Specific Style
Thread Gender
Male
For Liquid Type
Caustic/Sodium Hydroxide, E-85, Concentrated Sulfuric Acid, DEF, Ethanol, Peroxide, Potassium Hydroxide, Urea
Units of Measurement
Inches

Product Description

This easy-to-install AT-A-GLANCE level gauge is primarily for above-ground storage tanks and features 2-pc. bushing construction that allows you to aim the swing arm away from corners, walls, and other tank obstructions. Wetted materials are all stainless steel for outstanding compatibility with aggressive chemicals. Gauge is calibrated in eighths of a tank on one side, and quarters of a tank on the other. It’s easy to read since the top of the red indicator displays the approximate liquid level in your tank.
