THOMAS

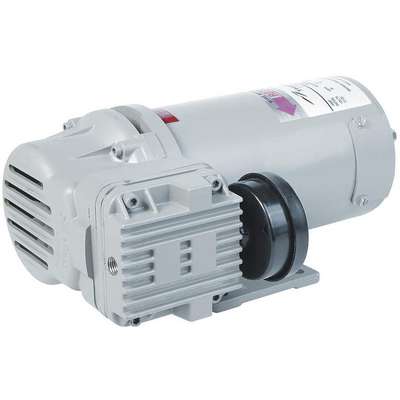

Piston Air Compressor: 0.25 hp, 1 Phase, 12V DC, 100 psi Max Continuous Pressure, 1.8 cfm
Hover over image to magnify
#916116-3 | Pkg Qty: 1
$1,095.03 pkg | $1,095.03 ea
Unavailable
Shipping to 60045
Technical Specifications
Key Specifications
(F)NPT Inlet
1/4 in.
Maximum PSI Cont./Int.
-/100
(F)NPT Outlet
1/4 in.
Mfr. Part Number
270024
Air Consumption
scfm
Motor Type
PMDC
Brand
THOMAS
Number of Cylinders
1
Cylinder Material
Cast Iron
Outlet Size
1/4 in. NPT
Cylinders
1
Overall Height
5-13/16 in.
Finish
Gray Paint
Overall Length
11-9/16 in.
Free Air CFM @ 0 PSI
1.7
Overall Width
5-13/16 in.
Free Air CFM @ 50 PSI
1.09
Package Quantity
1
Free Air CFM @ 90 PSI
0.8
RPM
1800
Full Load Amps
26
Shipping Weight
22.5 lb.
Horsepower
1/4
Type
Articulating Piston
Inlet Size
1/4 in. NPT
Valve
Stainless Steel
Item
Piston Air Compressor
Voltage
12 VDC
Lubrication Type
Oil-Less
Width
5-13/16 in.
General
Air Tank Style
Tankless
Maximum Continuous Pressure
100 psi
Compressor Pump Style
Reciprocating
Maximum Intermittent Pressure
100 psi
Free Air CFM @ 100 PSI
0.7
Maximum Pressure Cont/Int
100 psi / 100 psi
Free Air CFM @ 20 PSI
1.4
Output Power
0.25 hp
Free Air Flow Rate
1.8 cfm
Piston Type
Articulating
HP
1/4 hp
Sound Rating
70 dBA @ 100 psi
Product Description
Permanently lubricated components and stainless steel valves provide long life and maximum performance. Pump cylinders are corrosion-resistant for harsh environments.
