THOMAS

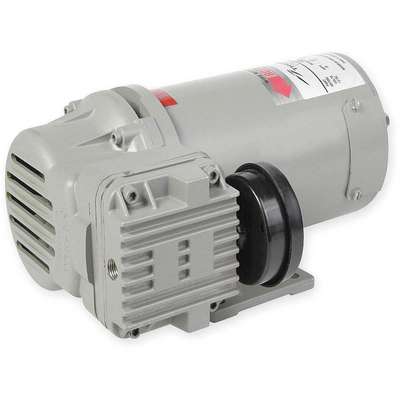

Piston Air Compressor: 0.333 hp, 1 Phase, 12V DC, 100 psi Max Continuous Pressure, 1 cfm
#916098-4 | Pkg Qty: 1
$1,873.77 pkg | $1,873.77 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
(F)NPT Inlet
1/4 in.
Maximum PSI Cont./Int.
-/100
(F)NPT Outlet
1/4 in.
Mfr. Part Number
270025
Air Consumption
scfm
Number of Cylinders
1
Brand
THOMAS
Overall Height
8-5/8 in.
Cylinder Material
Cast Iron
Overall Length
11-1/5 in.
Cylinders
1
Overall Width
5-5/8 in.
Finish
Gray
Package Quantity
1
Free Air CFM @ 0 PSI
2.2
RPM
1800
Free Air CFM @ 50 PSI
1.34
Rating
Continuous Duty
Free Air CFM @ 90 PSI
1.03
Shipping Weight
25.44 lb.
Full Load Amps
28
Type
Articulating
Horsepower
1/3
Valve
Stainless Steel
Item
Piston Air Compressor
Voltage
12 VDC
Lubrication Type
Oil-Less
Width
5-5/8 in.
General
Air Tank Style
Tankless
Maximum Continuous Pressure
100 psi
Compressor Pump Style
Reciprocating
Maximum Intermittent Pressure
100 psi
Free Air CFM @ 100 PSI
0.95
Maximum Pressure Cont/Int
100 psi / 100 psi
Free Air CFM @ 20 PSI
1.75
Output Power
0.333 hp
Free Air Flow Rate
1 cfm
Piston Type
Articulating
HP
1/3 hp
Sound Rating
65 to 70 dBA
Product Description
Permanently lubricated components and stainless steel valves provide long life and maximum performance. Pump cylinders are corrosion-resistant for harsh environments.
