AIRMASTER FAN

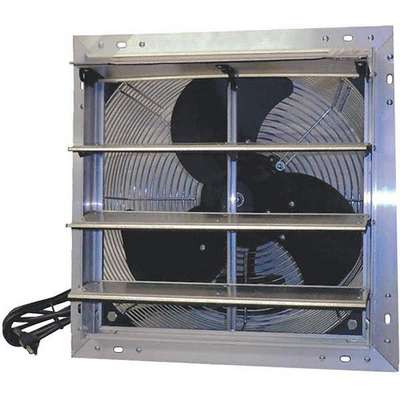

Airmaster Fan 1/15 HP 24"-Dia. 115VACV Shutter Mount Exhaust Fan, 24" Square Opening Required

Hover over image to magnify
Exhaust Fan,24 In,115V,1/15hp,
Exhaust Fan,24 In,115V,1/15hp,

#916092-6 | Pkg Qty: 1

$686.57 pkg | $686.57 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Agency Compliance
UL
Motor HP
1/15
Bearing Type
Ball
Motor Type
PSC
Blade Diameter
24 in.
Number of Blades
3
Blade Material
Aluminum
Package Quantity
1
Brand
AIRMASTER FAN
Phase
1
Height
27-1/8 in.
Shipping Weight
39.8 lb.
Item
Shutter Mount Exhaust Fan
Voltage
115 VAC
Mfr. Part Number
23014
Width
27-1/8 in.
Motor Enclosure
Open Dripproof
General
Assembled
Fully Assembled
Maximum Ambient Operating Temperature
104 Degrees F
Duct Shape
Round
Maximum Exhaust Airflow @ 0.000 in SP
2001 to 4000 cfm
Exhaust Airflow @ 0.000 in SP
3,214 cfm
Maximum Noise Level
11.7 sones
Exhaust Airflow @ 0.100 in SP
2,708 cfm
Maximum Noise Level @ 0.000 in SP @ 5 ft
Greater than 9.0 sones
Exhaust Airflow @ 0.125 in SP
2,015 cfm
Motor Enclosure Design
Open Dripproof (ODP)
Fan Style
Shutter-Mounted
Motor Horsepower
1/15 hp
Fan Voltage
115V AC
Motor Speed
1,050 RPM
For Cut-Out Height
24 1/2 in
Nameplate Voltage
115V AC
For Cut-Out Length
24 1/2 in
Noise Level @ 0.000 in SP @ 5 ft
11.7 sones
For Cut-Out Width
24 1/2 in
Noise Level @ 0.100 in SP @ 5 ft
11.7 sones
For Maximum Wall Thickness
5 1/2 in
Nominal Voltage
115V AC
For Minimum Wall Thickness
3 in
Number of Fans
1
Full Load Current
2.2 A
Profile Height Family
Medium
Guard Finish
Chrome
Square Opening Required
20-1/2 to 30 in
Guard Type
Exhaust
Supply Airflow @ 0.000 in SP
2,708 cfm
Includes
9 ft Cord, Shutter
Temperature Thermostat Opens
104 Degrees F
Includes Motor
Yes
Ventilation Type
Exhaust
Maximum Airflow
3,214 cfm

Product Description

Shutter Mount Exhaust Fan, Blade Dia. 24 in, Number of Speeds 1, Fan Voltage 115V AC, CFM @ 0.000-In. SP 3214, Exhaust/Supply Fan Motor HP 1/15 hp, Square Opening Required 24 1/2 in, CFM @ 0.125-In. SP 2015, Sones @ 0.000-In. SP @ 5 Ft. 11.7, Motor RPM 1050, Hz 60, Phase 1, Full Load Amps 2.2, Max. Ambient Temp. 104 Degrees F, Motor Type PSC, Motor Enclosure Open Dripproof, Motor Insulation Class B, Bearing Type Ball, Height 27 1/8 in, Width 27 1/8 in, Max. Depth 12 5/8 in
