DAYTON

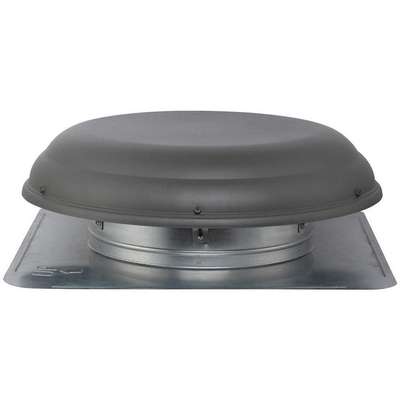

Dayton Roof Attic Ventilator, 2,100 Max. Attic Area (Sq.-Ft.), 1500 CFM @ 0.000-In. SP, Automatic, 120V
Hover over image to magnify
#916090-3 | Pkg Qty: 1
$121.01 pkg | $121.01 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
DAYTON
Mounting Location
Roof
Item
Attic Ventilator
Package Quantity
1
Mfr. Part Number
10N201
Shipping Weight
20.02 lb.
Motor HP
1/6
Voltage
120
General
Airflow @ 0.000 in SP
1,500 cfm
Includes Thermostat
Yes
Airflow @ Static Pressure
1400 cfm @ 0.030 in
Maximum Attic Area
2,100 sq ft
Base Material
Steel
Maximum Fan Speed
1,500 RPM
Current
2.3 A
Maximum Motor Speed
1,500 RPM
Dome
Gray Zinc Plated Steel
Motor Horsepower
1/6 hp
Dome Diameter
24 in
Nameplate Voltage
120V AC
Dome Dimensions
24 in Round
Overall H x W x L
8 in x 24 in x 24 in
Dome Material
Gray Zinc Plated Steel
Power Source/High-Efficiency Motors
Standard-Efficiency Motor
Dome Shape
Round
Rough Opening
14 1/2 in Round
Exhaust Airflow @ 0.000 in SP
1,500 cfm
Rough Opening Diameter
14 1/2 in
Exhaust Airflow @ 0.000 in SP - Range
1,500 to 2,000 cfm
Rough Opening Shape
Round
Includes
Thermally Protected Motor, Thermostat
Thermostat Temperature Range
60 Degrees to 120 Degrees F
Includes Motor
Yes
Product Description
This ventilator blends into most roof designs and saves energy costs by circulating air, cooling the attic, and reducing overall air conditioner strain. It features low sound levels for domestic or commercial applications.
