DAYTON

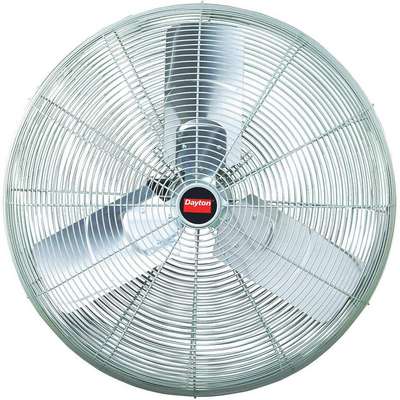

Dayton 30" Standard-Duty Industrial Fan, Stationary, Fan Head Only, 115 VAC

Hover over image to magnify
Air Circulator,30 In,9704 Cfm,
Air Circulator,30 In,9704 Cfm,
Dayton 30" Standard-Duty Industrial Fan, Stationary, Fan Head Only, 115 VAC Video

#916069-7 | Pkg Qty: 1

$449.15 pkg | $449.15 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Required Items

Items below are required. They are not included and need to be ordered separately.
Mounting Bracket,Steel
Pkg Qty: 1
$207.63 pkg
Mounting Bracket,Steel
Pkg Qty: 1
$207.63 pkg
Mounting Bracket,Steel
Pkg Qty: 1
$207.63 pkg

Technical Specifications

Key Specifications
Air Flow
8,800/9,800 cfm
Motor Type
Permanent Split Capacitor
Assembled/Unassembled
Yes
Mounting Location
Fan Head Only
Bearing Type
Ball
NEMA Plug Configuration
5-15P
Blade Diameter
30 in.
Number of Blades
3
Blade Material
Aluminum
Number of Conductors
3
Brand
DAYTON
Oscillating
No
Cord Length
10 ft.
Outside Diameter
33 in.
Drive Type
Direct
Package Quantity
1
Duty
Standard Duty
Phase
1
Guard Material
Steel
Shaft Diameter
1/2 in.
Hz
60 Hz
Shipping Weight
54 lb.
Item
Industrial Fan Head
Sound Level
75 dBA
Mfr. Part Number
1VCE9
Standards
cULus Listed
Mobile/Stationary
Stationary
Thermal Protection
Automatic
Motor Enclosure
Totally Enclosed Air Over
Voltage
115V AC
Motor HP
1/2
Watts
450/370
Motor Insulation
Class B
Width
33 in.
Motor RPM
1100/850
General
Air Velocity @ 10 Ft.
1250/1070 fpm
Fan Mounting Location
Fan Head Only
Air Velocity @ 20 Ft.
760/705 fpm
Includes
Mounting Bolts
Air Velocity @ 40 Ft.
300/280 fpm
Max. Ambient Temp.
104 Degrees F
Application
Spot Cooling and People Cooling
Wire Guard Finish
Polyester Powder Coated Gray
Environmental Applications
Industrial

Product Description

Standard-duty industrial fan heads provide cooling in heavy manufacturing areas and other dusty or dirty environments. These fan blade, motor, and guard assemblies can be paired with a new or existing bracket or base.

Industrial fan heads are assemblies for replacing a broken fan head on an existing mount or pairing with a new mount to create a fan suited for a specific environment or application. These fan blade, motor, and guard assemblies are used with a separate base or mounting bracket. They are made of heavy-gauge materials suitable for daily use in industrial cooling and temperature-regulation applications. Their powerful motor drives the fan blades to move large volumes of air, is totally enclosed to keep out dirt and dust, and features high-performance bearings for a long life. The guard encloses the fan blades to help protect them from damage and prevent injuries from accidental contact.
