CAMPBELL

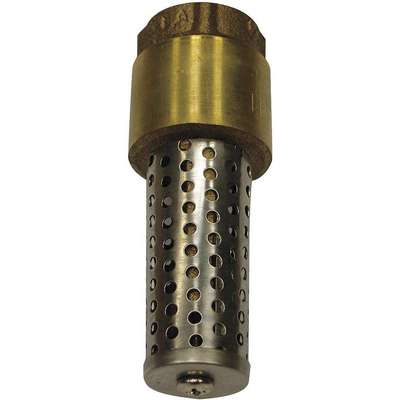

Spring Foot Valve: Single Flow, Spring, Inline, Brass Body, Stainless Steel Strainer, FNPT x FNPT
Hover over image to magnify
#916059 | Pkg Qty: 1
$101.03 pkg | $101.03 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
CAMPBELL
Mfr. Part Number
FV-8TLF
Connection Type
FNPT
Mounting Position
Vertical or Horizontal
Item
Spring Foot Valve
Overall Height
7-1/2 in.
Length
3 in.
Package Quantity
1
Material
Low Lead Brass
Shipping Weight
2.7 lb.
Maximum Temperature
190 deg. F
Width
3 in.
General
Application - Valves
Pumps
Min. Temp. - Valves
35 Degrees F
Body Material - Valves
Brass
Mounting Orientation - Valves
Horizontal, Vertical
Connection Type - Valves
FNPT x FNPT
Pipe or Tube Size - Valves
2 in
Cracking Pressure - Valves
0.5 psi
Seal Material - Valves
NBR
Flow - Valves
30.0 gpm
Seat Material - Valves
Bronze
Flow Design
Single
Standards
ASTM B62
Max. Temp. - Valves
158 Degrees F
Strainer Material
Stainless Steel
Max. Water Pressure - Valves
200 psi
Valve Body Design
Inline
Product Description
Check and Foot Valves
- Prevent backflow or loss of prime.
- Lead-Free and Low-Lead
- Max. temp.: 190°F for low-lead, 180°F for lead-free
- Stainless steel spring and screen; nitrile seal. Lead-Free Brass Check Valves have a nonspin acetal poppet. Lead-Free Bronze Foot Valves have an Enviro-Check® body. Low-Lead Brass Check and Foot Valves have bronze seat.
Item Barcode
Spring Foot Valve,Low Lead
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 36Y056 | Spring Foot Valve,Low |
 | UNSPSC CODES | 40141618 | |
 | VMRS (ATA) CODES | 053-006-009 | Spring Foot Valve,Low |
