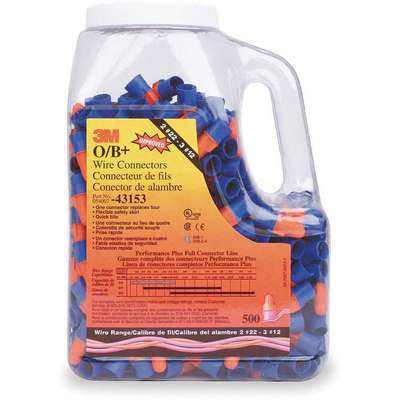

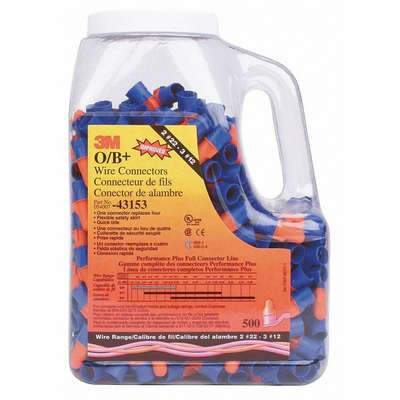

3M Twist On Wire Connector, Application Wide Range, Wire Connector Style Standard, Color Blue/Orange
Hover over image to magnify
#915924-5 | Pkg Qty: 500
$131.15 pkg | $0.26 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Application
Wide Range
Mfr. Part Number
O/B+Jug
Brand
3M
Minimum Single Wire Size
22 AWG
Color Family
Blue / Orange
Minimum Wire Combination
(2) 22 AWG
Description/Special Features
Replaces Orange, Blue, And Gray Connectors
Minimum Wire Size
22 AWG
Height
0.76 in.
Package Quantity
500
Item
Twist On Wire Connector
Series
Performance Plus
Length
1.17 in.
Shipping Weight
1.5 lb.
Maximum Single Wire Size
12 AWG
Type
Wire
Maximum Voltage
600 VAC
Width
0.49 in.
Maximum Wire Combination
(3) 12 AWG
Wire Connector Style
Standard
Maximum Wire Size
12 AWG
General
For Conductor Material
Copper
Standards
CSA Certified, CE Marking
For Wire Size
12 AWG, 14 AWG, 16 AWG, 18 AWG, 20 AWG, 22 AWG
Strip Length
5/8 in
Maximum Conductors
6
Twist-On Wire Size Ranges
22 AWG – 12 AWG
RoHS Compliant
Yes
UL 94 Flammability Rating
V-2
Special Features
Replaces Orange, Blue, And Gray Connectors
Product Description
The 3M™ Performance Plus Wire Connector O/B+ features a quick-biting spring that lets you connect and insulate copper wires, with a tight, reliable connection every time. This single O/B+ connector replaces traditional orange and blue connectors, with a wide wire range that gives you more room to work with.
Expertly Selected Product Pairings
Item Barcode
Twist On Wire Connector,22-12
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 1DLZ4 | Twist On Wire |
 | UNSPSC CODES | 39121409 | |
 | VMRS (ATA) CODES | 053-007-002 | Twist On Wire |
