HUBBELL WIRING DEVICE-KELLEMS

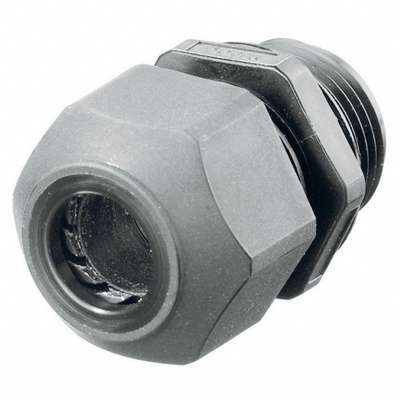

Liquid Tight Cord Connector, 0.17" to 0.45" Cord Dia. Range, 1/2" MNPT, Nylon
Hover over image to magnify
#915884-4 | Pkg Qty: 1
$4.32 pkg | $4.32 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Body Color
Gray
Liquid Tight / Dust Tight
Liquid Tight
Body Material
Nylon
Male/Female
Male
Box Connection
1/2 in. MNPT
Material
Nylon
Brand
HUBBELL WIRING DEVICE-KELLEMS
Material of Construction
Nylon
Collar Material
Nylon
Maximum Operating Temperature
225 deg. F
Color Family
Gray
Mesh Length
No Strain Relief Mesh
Conduit Size
1/2 in.
Mesh Material
No Strain Relief Mesh
Connector Type
Straight
Mfr. Part Number
SEC50GA
Cord Diameter Range
0.17 in. to 0.45 in.
Minimum Operating Temperature
-22 deg. F
Gland Color Code
No Code
Minimum Throat Diameter
0.59 in.
Hazardous Location Rating
Not Rated
Number of Cords
1
Hub Size
1/2 in.
Overall Length
1-11/16 in.
Hub Trade Size
1/2 in.
Package Quantity
1
IP Rating
IP66
Series
Low Profile NPT
Insulated
Yes
Shipping Weight
.05 lb.
Item
Liquid Tight Cord Connector
Thread Type
NPT
Length
1.7 in.
Type
NPT
General
Compatible Conduit Trade Size
1/2 in
Length - Box to End of Connector
1 11/16 in
Compatible Conduit Type
Liquid Tight Cord Connector
Liquid Tight
Yes
Connection Orientation
Straight
Min. Throat Dia.
0.59"
Environmental Rating
Not Flammable
Standards
UL 514B, CSA C22.2 No. 18, VDE
External Strain Relief Length
No External Strain Relief
Strain Relief Type
No External Strain Relief
For Maximum Cable OD
0.45 in
Style - Connector
Straight
For Minimum Cable OD
0.17 in
Thread Gender
Male
For Use With
Kellems Wire Management
Thread-Type
NPT Thread
Product Description
Suitable for NEMA Type 4 and 6 enclosures, this connector provides excellent pullout strength and can be installed without disassembly. It resists saltwater, weak acids, gasoline, alcohol, oil, grease, and common solvents. The threaded body guards against skipping and speeds installation. The compression nut ratchet prevents unintentional loosening.
