HONEYWELL

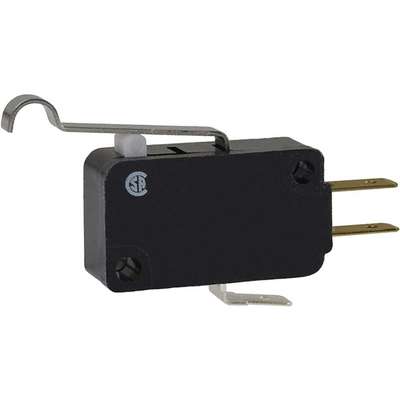

Honeywell 3A @ 240V Lever, Simulated Roller Miniature Snap Action Switch; Series V7
Hover over image to magnify
#915860-3 | Pkg Qty: 1
$6.34 pkg | $6.34 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
AC Contact Rating
3 A @ 240 V
Maximum Pretravel
0.11 in.
Actuator Length
1.29 in.
Mfr. Part Number
V7-1B17D8-263
Actuator Type
Lever, Simulated Roller
Mounting Dimension
0.41 x 0.87 in. Centers
Amperage
3 A
Number of Circuits
1
Basic Actuator Type
Lever
Operating Force
3.17 oz.
Brand
HONEYWELL
Operating Temperature Range
-4 deg. F to 180 deg. F
Contact Form
SPDT
Over Travel
0.06 in.
Contact Type
SPDT
Package Quantity
1
Current Rating
3A
Release Force
0.31 oz.
DC Contact Rating
0.2 A @ 250 V
Series
V7
Depth
0.4 in.
Shipping Weight
.01 lb.
Differential Travel
0.03 in.
Snap Action Switch Type
Miniature Snap Action Switch
Electrical Connection
Quick Connect
Type
Premium V-Basic
Height
0.63 in.
Type of Actuator
Simulated Roller Lever
Housing Material
PCT Polyester Thermoplastic
Voltage
277 VAC
Item
Miniature Snap Action Switch
Voltage Rating
250 VAC
Length
1.14 in.
Width
1.14 in.
Lever Actuator Length
1.29 in.
General
AC Contact Rating - Snap Action Switch
11 A @ 277 V
Height - Snap Action Switch
0.63 in
Actuator Type - Snap Action Switch
Lever, Simulated Roller
Lever Actuator Length - Snap Action Switch
1.29 in
Basic Actuator Type - Snap Action Switch
Lever
Mounting Dimension - Snap Action Switch
0.87 in Centers
Contact Form- Switches
SPDT
Number of Circuits - Snap Action Switch
1
DC Contact Rating - Snap Action Switch
0.2 A @ 250 V
Operating Temp. Range
-40° to 180°F
Depth - Snap Action Switch
0.4 in
Standards
UL, CSA, ENEC
Electrical Connection - Snap Action Switch
3/16 in Quick Connect
Width - Snap Action Switch
1.14 in
Product Description
This Microswitch™ miniature switch features quick-connect terminals and a simulated roller lever actuator. It is designed to operate in temperatures ranging between -40° and 180°F.
Expertly Selected Product Pairings
Documents
Item Barcode
Mini Swch,3A,Spdt,Simultd
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 24A246 | Mini Swch,3A, SPDT,Simultd |
 | UNSPSC CODES | 39122209 | |
 | VMRS (ATA) CODES | 034-004-081 | Mini Swch,3A, SPDT,Simultd |
