INGERSOLL RAND

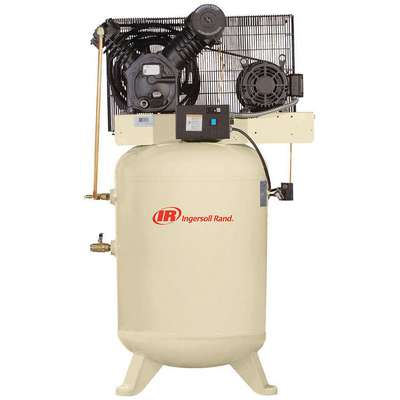

3 Phase - Electrical Vertical Tank Mounted 10.0HP - Air Compressor Stationary Air Compressor, 120 ga

Hover over image to magnify
Electric Air Compressor,2
PI_Asset_3734932
Electric Air Compressor,2
PI_Asset_3734932
3 Phase - Electrical Vertical Tank Mounted 10.0HP - Air Compressor Stationary Air Compressor, 120 ga Video

#915745-4 | Pkg Qty: 1

$6,373.40 pkg | $6,373.40 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
(F)NPT Outlet
3/4 in.
Maximum Pressure
175 psi
Air Consumption
scfm
Mfr. Part Number
2545K10-V-200/3
Amperage
31 A
Number of Stages
2
Amps AC
31
Overall Height
82 in.
Brand
INGERSOLL RAND
Overall Length
38-1/4 in.
Compressor Package Type
Base Model
Overall Width
32 in.
Compressor Type
Tank Mounted
Package Quantity
1
Control
Pressure Switch
Phase
3
Cylinder Material
Cast Iron
Pump Location
Tank Mounted
Duty Cycle
Continuous
Pump RPM
1050
Enclosure
NEMA 1
Shipping Weight
941 lb.
Finish
Powder Coated
Tank Size
120 gal.
Free Air CFM @ Max Pressure
35
Tank Style
Vertical
Horsepower
10
Tank Type
Vertical
Hz
60
Type
Base Model
Input Voltage
200 VAC
Voltage
200
Item
Electric Air Compressor
Width
32 in.
Lubrication Type
Splash Lubricated
General
ASME Tank
Yes
Motor Starter Included
Yes
Air Tank Size
120 gal
Number of Stages - Air Compressor
2
Air Tank Style
Vertical
Off Pressure Switch Setting
175 psi
Compressor Voltage
200V AC
On Pressure Switch Setting
135 psi
Free Air CFM @ 175 PSI
35.0
Outlet Gender
Female
Free Air CFM @ Max. Pressure - Air Compressor
35.0
Output Power
10 hp
Free Air Flow Rate @ Max Pressure
35 cfm
Phase - Electrical
3
Free Air Flow Rate @ Maximum Pressure
35 cfm
Pump Location - Air Compressor
Tank Mounted
HP
10
Pump Oil Capacity
2.3 qt
HP - Air Compressor
10.0 hp
Sound Level Range
Standard (70 dBA or more)
Includes
Manual Drain Valve, Motor Starter, Oil Sight Glass, Pressure Gauge, Pressure Safety Valve
Standards
ASME, California Code, CSA
Input Voltage - Air Compressor
200V AC
Style - Air Compressor
Simplex
Life Expectancy
15,000 hr
Tank Size - Air Compressor
120 gal
Lubrication Type - Air compressor
Splash Lubricated
Tank Style - Air Compressor
Vertical
Max Operating Pressure
175 psi
dBA @ 3 Feet
83.0
Max. Pressure - Air Compressor
175 psi

Product Description

This 100% continuous-duty compressor features a totally enclosed belt guard, automatic Start/Stop control, and an oil sight glass.

  • Expected pump life: 15,000 hr.
  • ASME tank with discharge isolation valve
  • Must be hardwired
  • Required start-up kit sold separately
