DAYTON

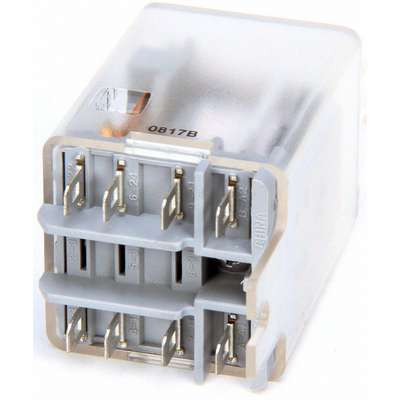

Dayton 12VDC, 8-Pin Flange Mount Relay; Flange Location: Side, AC Contact Rating: 10A @ 277V
Hover over image to magnify
#915726-8 | Pkg Qty: 1
$18.55 pkg | $18.55 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
AC Contact Rating
10 A @ 277 V
Input Power Consumption
1.2 W
Base Type
Square
Item
Flange Mount Relay
Body Depth
1.37 in.
Mfr. Part Number
5YR13
Body Height
1.9 in.
Mounting
Side Flange
Brand
DAYTON
Number of Pins
8
Coil VA Rating
1.22
Number of Poles
2
Coil Volts
12 VDC
Overall Height
2.15 in.
Contact Form
DPDT
Package Quantity
1
Contact Material
Durable Silver Alloy
Pins
8
Contact Rating
10 A @ 277 VAC/30 VDC
Relay Power Consumption
1.2 W
DC Contact Rating
10 A @ 28 V
Resistive Contact Amp Rating
15A @ 120/240VAC, 12A @ 28VDC
Electrical Connection
0.187 in. Solder Terminals
Shipping Weight
.2 lb.
Flange Location
Side
Status Indicator
No
HP @ 240 V
1
Type
Flange Mount
General
AC Contact Rating - Relay
10A @ 277V
HP @ 240V
1 hp
Body Depth - Relay
1.37 in
Mounting - Relay
Side Flange
Body Height - Relay
1.9 in
Number of Pins - Relay
8
Contact Form - Relay
DPDT
Overall Height - Relay
2.15 in
DC Contact Rating - Relay
10A @ 28V
Power Consumption - Relay
1.2 W
HP @ 120V
1/3 hp
Standards
E40944
Product Description
Flange Mount Relay, Coil Volts 12V DC, AC Contact Rating - Relay 10A @ 277V, DC Contact Rating - Relay 10A @ 28V, Number of Pins - Relay 8, Contact Form - Relay DPDT, Mounting - Relay Side Flange, Power Consumption - Relay 1.2 W, Contact Material Durable Silver Alloy, Status Indicator No, Electrical Connection 0.187 in Solder Terminals
Item Barcode
Relay,8 Pins,Dpdt
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 5YR13 | Relay,8 Pins, Dpdt |
 | UNSPSC CODES | 39122325 | |
 | VMRS (ATA) CODES | 053-007-002 | Relay,8 Pins, Dpdt |
