SCHNEIDER ELECTRIC

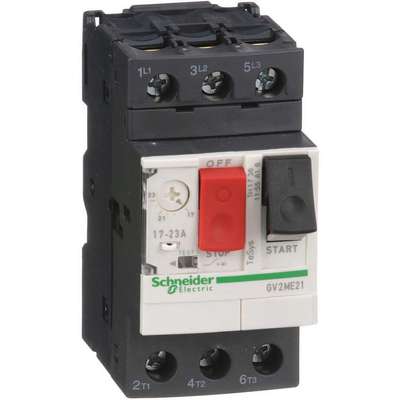

Schneider Electric Push Button Manual Motor Starter, No Enclosure, 17 to 23 Amps AC

Hover over image to magnify
Manual Motor Starter,Iec,17 To

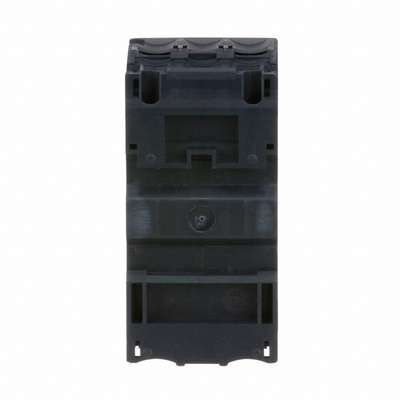

PI_Asset_1984654
PI_Asset_1988678

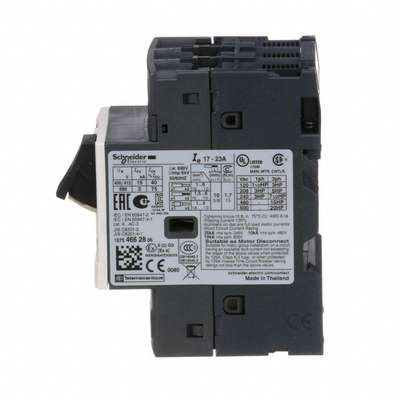

PI_Asset_1991793
PI_Asset_1992757
Manual Motor Starter,Iec,17 To
PI_Asset_1984654
PI_Asset_1988678
PI_Asset_1991793
PI_Asset_1992757
Schneider Electric Push Button Manual Motor Starter, No Enclosure, 17 to 23 Amps AC Video
Double tap image to magnify
Manual Motor Starter,Iec,17 To
3CY92_1
3CY92_2
3CY92_3
3CY92_4
Manual Motor Starter,Iec,17 To
3CY92_1
3CY92_2
3CY92_3
3CY92_4
givnrdPXRFw

#915691-1Pkg Qty: 1

$248.45 pkg | $248.45 ea

In Stock

Shipping to 43085
Expected to arrive Tue. Mar 25.
|

Technical Specifications

Key Specifications
Amps AC
17 to 23
Item
Manual Motor Starter
Brand
SCHNEIDER ELECTRIC
Mfr. Part Number
GV2ME21
Depth
2.6 in.
Number of Poles
3
Description/Special Features
Melting Alloy Ther Mal Overload, Single Unit
Package Quantity
1
Enclosure NEMA Rating
No Enclosure
Phase Loss Sensitivity
No
Enclosure Type
Open
Shipping Weight
.66 lb.
HP @ 1 Phase - 120 V
1-1/2 hp
Starter Type
IEC Style
HP @ 1 Phase - 230 V
3 hp
Type
IEC
Height
3-1/2 in.
Width
1-3/4 in.
General
HP @ 1 Phase - 115V
1-1/2
HP @ 3 Phase - 460-575V
15/20
HP @ 1 Phase - 120V
1 1/2 hp
HP @ 3 Phase - 460V
15
HP @ 1 Phase - 230V
3 hp
HP @ 3 Phase - 480V
15 hp
HP @ 3 Phase - 200V
5
HP @ 3 Phase - 575V
20 hp
HP @ 3 Phase - 208V
5 hp
Operator
Push Button
HP @ 3 Phase - 230V
7-1/2
Overload Relay Amp Setting
17 to 23A
HP @ 3 Phase - 240V
7 1/2 hp
Standards
CSA, UL

Product Description

IEC Manual Motor Starters

  • Bimetallic thermal overload relays 3-pole Trip test Phase loss sensitivity protection 35mm DIN rail mounting Class 10 overload protection Schneider Electric Can be used alone for local, manual control of a single motor. Operating current of instantaneous magnetic trip is approx. 13 times the max. thermal trip (nonadjustable setting). 10K AIR at 480V. Mechanical and electrical life: 100,000 operations, max. 25 operations per hr. UL Listed, CSA Certified, and CE Certified. Conforms to IEC standards.
