APPROVED SUPPLIER

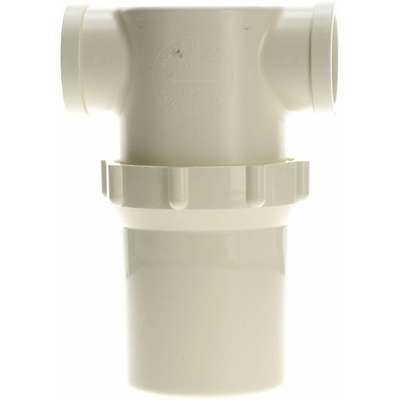

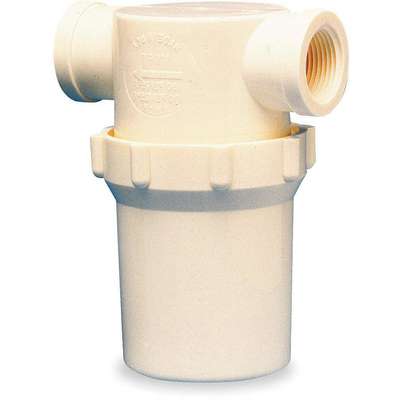

Inline Strainer: Nylon, 1 1/4 in, NPT, 48 mesh, 100 psi @ 125°F, 7 1/8 in Ht, 5 in Lg, White

Hover over image to magnify
Line Strainer, 1-1/4 In Fnpt
PI_Asset_1365264
Line Strainer, 1-1/4 In Fnpt
PI_Asset_1365264

#915678-8 | Pkg Qty: 1

$96.12 pkg | $96.12 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
APPROVED SUPPLIER
Material
Nylon
Color Family
White
Maximum Pressure
100 psi @ 125°F
Connection
FNPT
Mfr. Part Number
5589190
Diameter
4 in.
Package Quantity
1
Flow Rate
14.5 gpm
Pipe Size
1-1/4 in.
Height
7-1/8 in.
Screen Material
304 Stainless Steel
Item
T-Line Strainer
Shipping Weight
.9 lb.
Length
5 in.
General
Connection Gender
Female
Outgoing Tube Size
1 1/4 in
Includes Screen
Yes
Screen Area
31.84 sq in
Incoming Tube Size
1 1/4 in
Strainer Connection Type
NPT (National Pipe Thread) Threaded Connection
Material Grade
304
Strainer Type
Mesh
Maximum Pressure at 100 deg F
100 psi @ 125 Degrees F

Product Description

Economical solution for cost effective filtering and straining this Approved Supplier T-line strainer is ideal for use use as drinking water prefilters and in agricultural sprayers, floor scrubbers, pressure washers, medical devices, and car wash applications. The included 304 micron stainless steel filter screens can be easily cleaned or replaced by removing the bowl; no need to remove the entire strainer from the line.
