SPEEDAIRE

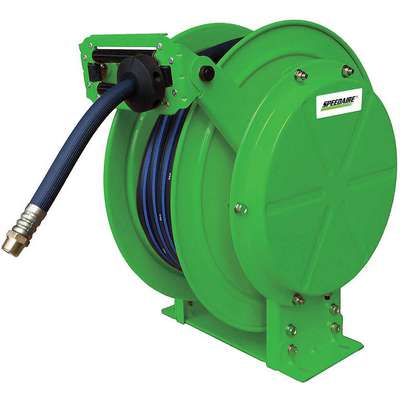

Spring Return Hose Reel: 100 ft (1/2 in I.D.), 1/2 in MNPT, 300 psi Max Op Pressure, Steel, Green

Hover over image to magnify
Hose Reel,1/2in. (f)npt,100 Ft.
PI_Asset_1763064
Hose Reel,1/2in. (f)npt,100 Ft.
PI_Asset_1763064

#915678-6 | Pkg Qty: 1

$669.64 pkg | $669.64 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Bearings
Permanently Lubricated
Item
Spring Return Hose Reel
Brand
SPEEDAIRE
Latch
Locking
Drive Type
Spring Return
Maximum Pressure
300 psi
Enclosed
No
Maximum Temperature
150 deg. F
Enclosed Reel
No
Mfr. Part Number
31XG66
Finish
Powder Coated
Mounting Location Type
Bench, Ceiling, Floor, Truck, Wall
Hose Capacity
100 ft. (1/2 in I.D.)
Number of Guide Arms
Double Arm
Hose Ends
1/2 in. (M)NPT
Overall Height
21-5/16 in.
Hose Included
Yes
Overall Length
20-7/8 in.
Hose Inside Diameter
1/2 in.
Overall Width
12-1/2 in.
Hose Length
100 ft.
Package Quantity
1
Hose Material
PVC
Pedestal Type
Dual Pedestal
Hose Reel Group
Spring Return Hose Reels
Reel Inlet
1/2 in. (F)NPT
Hose Reel Media
Air, Water
Reel Material
Steel
Hose Reel Rating
Heavy Duty
Seal Type
Nitrile
Housing Material
Solid Brass
Shipping Weight
75 lb.
Includes Hose
Yes
General
Base Motion Type
Stationary
Hose Tube Material
PVC
Bearing Construction
Permanently Lubricated
Includes
Hose
Corrosion-Resistant
Yes
Includes Hose Stop
Yes
Drive Type - Hose Reels
Spring Return
Media - Hose Reels
Air, Water
Features
Heavy Duty
Mount Base Height
5 29/32 in
Finish - Hose Reels
Powder Coated
Mount Base Width
12 31/64 in
Fitting Gender
Male x Male
Mount Hole Diameter
5/16 in, 7/16 in
Hose Cover Material
PVC
Mounting Hole Center to Center Height
2 29/32 in, 3 47/64 in
Hose End Configuration
1/2 in MNPT
Mounting Hole Center to Center Width
1 37/64 in, 10 63/64 in
Hose Fitting A Material
Brass
Number of Mount Holes
8
Hose Fitting A Type
NPT
Swivel Inlet Gender
Female
Hose Fitting B Material
Brass
Swivel Inlet Size
1/2 in
Hose Fitting B Type
NPT
Swivel Inlet Thread Size
1/2 in - 14
Hose Inside Dia.
1/2 in
Swivel Inlet Type
NPT
Hose Outlet
1/2 in (M)NPT
Swivel Material
Steel
Hose Outside Dia.
13/16 in
Swivel Outlet Gender
Male
Hose Reel Primary Application
Air, Water
Swivel Outlet Size
1/2 in
Hose Reel Product Group
Spring Return Hose Reel
Swivel Outlet Thread Size
1/2 in - 14
Hose Reel Type
Bench, Ceiling, Floor, Vehicle, Wall Mount Hose Reel
Swivel Outlet Type
NPT

Product Description

Dual-arm air or water spring-return hose reels are built with all-steel, reinforced dual-pedestal bases and arms for increased stability. These low-pressure (up to 500 psi) reels are powder-coated for corrosion resistance, mount on a wall, ceiling, or in a truck, and include a field adjustable guide arm. Dual-arm hose reels hold air or water hoses and are commonly used in manufacturing facilities, auto or fleet service centers, and with food and chemical processing.
