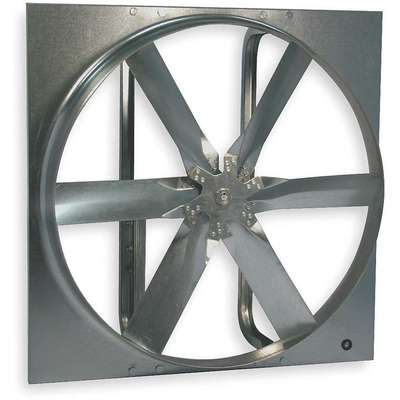

Dayton 24" Dia., Exhaust Fan with Drive Package, 115/208-230VACV, Totally Enclosed Fan-Cooled

Hover over image to magnify
Std Duty Fan,5292 Cfm,115/208-
PI_Asset_928603
Std Duty Fan,5292 Cfm,115/208-
PI_Asset_928603
Dayton 24" Dia., Exhaust Fan with Drive Package, 115/208-230VACV, Totally Enclosed Fan-Cooled Video

#915675-1 | Pkg Qty: 1

$1,037.15 pkg | $1,037.15 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Agency Compliance
AMCA
Motor HP
1/3
Assembled/Unassembled
Unassembled
Motor Type
Capacitor-Start
Bearing Type
Sealed Pillow Block
Mounting Position
Horizontal or Vertical
Blade Diameter
24 in.
Number of Blades
6
Blade Material
Galvanized Steel
Package Quantity
1
Brand
DAYTON
Phase
1
Height
28 in.
Shaft Diameter
3/4 in.
Item
Standard Duty Exhaust Fan with Motor and Drive Package
Shipping Weight
82.14 lb.
Mfr. Part Number
7CC77
Voltage
115/208-230
Motor Enclosure
Totally Enclosed Fan-Cooled
Width
28 in.
General
Assembled
Unassembled
Maximum Exhaust Airflow @ 0.000 in SP
0 to 10,000 cfm
Bearing Size
3/4 in
Maximum Inlet Temperature
104 Degrees F
Blade Finish
Galvanized
Maximum Noise Level
21 sones
Enclosure Design
Totally Enclosed Motor
Maximum Noise Level @ 0.000 in SP @ 5 ft
Greater than 50 sones
Exhaust Airflow @ 0.000 in SP
5,292 cfm
Motor Enclosure Design
Totally Enclosed Fan Cooled (TEFC)
Exhaust Airflow @ 0.125 in SP
4,830 cfm
Motor Horsepower
1/3 hp
Exhaust Airflow @ 0.250 in SP
4,207 cfm
Motor Speed
1,725 RPM
Fan Style
Panel
Motor Speed Range
1601 to 1800 RPM
Fan Voltage
115/208-230V AC
Nameplate Voltage
115/208-230V AC
Flange Depth
1 in
Noise Level @ 0.000 in SP @ 5 ft
21 sones
For Cut-Out Height
26 1/2 in
Noise Level @ 0.125 in SP @ 5 ft
20 sones
For Cut-Out Length
26 1/2 in
Nominal Voltage
115/208-230V AC
For Cut-Out Width
26 1/2 in
Number of Fans
1
Full Load Current
7.8 A
Square Opening Required
20-1/2 to 30 in
Includes
Drive Package
Vent Design
Ductless
Includes Motor
Yes
Ventilation Type
Exhaust
Manufacturer Warranty Length
1 yr
Venturi Depth
4 1/2 in
Maximum Airflow
5,292 cfm
Venturi Diameter
24 1/2 in

Product Description

Dayton® standard-duty belt-drive 24" exhaust fan is designed to be used in commercial applications that require high volumes of air at low static pressures. The fan features a 6-blade galvanized-steel propeller, rigid drive-frame rails, and a 1-pc. motor/bearing plate. Variable pitch and adjustable motor pulley optimize fan performance. Comes complete with a drive package, which includes the appropriate motor, belt, bushings and sheaves (all packed separately) to obtain the rated performance. Mount fan vertically for exhaust operation; horizontally for supply.

  •  Air handling-quality bearings meet a minimum of L10-100,000 hr.
  • UL and C-UL Listed
  •  Unassembled

Note: OSHA complying guards are required when a fan is installed within 8 ft. of floor, working level, or within reach of personnel; order No. 1WBU3. Review OSHA codes and UL standards.
