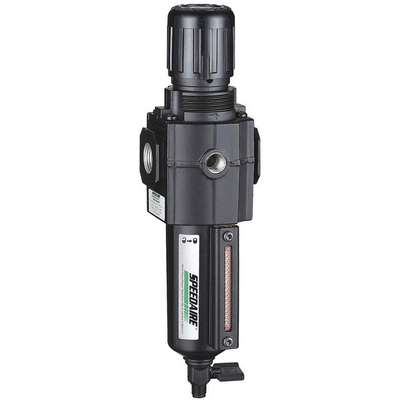

Filter-Regulator: 1/4 in NPT, 80 cfm, 40 micron, 5 psi to 150 psi, 250 psi Max Op Pressure

Name: Filter-Regulator: 1/4 in NPT, 80 cfm, 40 micron, 5 psi to 150 psi, 250 psi Max Op Pressure
Brand: SPEEDAIRE
SKU: 9156742
Price: 90.22 USD
Availability: InStock

Hover over image to magnify

Double tap image to magnify

#915674-2Pkg Qty: 1

$90.22 pkg | $90.22 ea

In Stock

Shipping to 43085

Expected to arrive Tue. Apr 01.

Technical Specifications

Key Specifications

Adjustment

5 to 150 psi

Maximum Temperature (Deg. F)

175

Adjustment Knob

Non Rising

Mfr. Part Number

4ZK86

Air Consumption

scfm

NPT

1/4 in.

Bowl Material

Metal with Sight Gauge

Overall Height

9.95 in.

Brand

SPEEDAIRE

Overall Width

2.68 in.

Filter Rating

40 micron

Package Quantity

Item

Filter/Regulator

Pipe Size

1/4 in. NPT

Maximum Flow

80 cfm

Shipping Weight

1.9 lb.

Maximum Flow (CFM)

78 CFM

Type

Intermediate

Maximum Pressure

250 psi

Width

2.68 in.

Maximum Temperature

175 deg. F

General

Adjustment Location

Top

Filter Bowl Material

Metal

Adjustment Mechanism

Knob

For Fluid Type

Compressed Air

Adjustment Mechanism Material

Reinforced Nylon

For Removal Of

Particles, Water

Air Flow Direction

Left to Right

For Substance Type

Air

Air Inlet Gender

Female

Gauge Port Size

1/4 in PTF

Air Inlet Type

NPT

Includes

Metal Bowl

Air Outlet Gender

Female

Max. Flow Range - Air Treatment

71 to 100 cfm

Air Outlet Type

NPT

Maximum Regulated Pressure

150 psi

Bowl Size - Air Treatment

3.5 oz

Minimum Operating Pressure

0.85 MPa

Connection Size - Air Treatment

1/4 in NPT

Minimum Regulated Pressure

5 psi

Drain Part Compatibility

114X33

Modular Connection

No Modular Connection

Filter Bowl Capacity

3.5 oz

Pressure Gauge Port Gender

Female

Filter Bowl Guard Included

Yes

Pressure Gauge Port Type

PTF

Filter Bowl Guard Material

Aluminum

Regulator Type

Relieving

Product Description

Modular connector allows easy removal and swap out. For Max. Flow, the CFM flow is measured with 150 psig inlet adjusted to a set pressure of 90 psig (while increasing flow) and a 15 psig drop. Warning: Do not connect to bottled gas.
