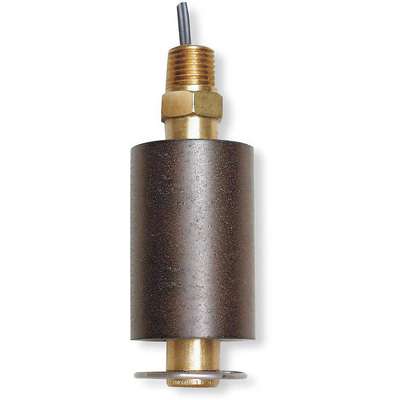

Madison Vertical Open Tank Liquid Level Switch, Selectable, Buna N, 1/4" NPT

Hover over image to magnify
Lqd Lvl Swch,1/4 In Npt,
PI_Asset_928968
Lqd Lvl Swch,1/4 In Npt,
PI_Asset_928968

#915531 | Pkg Qty: 1

$58.81 pkg | $58.81 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Body Material
Brass
Mounting
Vertical Open Tank
Brand
MADISON
Mounts
Vertical
Conduit Size
1/4 in.
Operating Temperature Range
221 deg. F
Contact Form
SPST
Operation
NO/NC
Electrical Connections
22 ga. MTW Coated 24 in. Leads
Overall Length
3.38 in.
Fitting
1/4 in. NPT
Package Quantity
1
Float Diameter
1.25 in.
Shipping Weight
.15 lb.
Float Length
2.00 in.
Stem Length
2.63 in.
Float Material
Buna N
Stem Material
Brass
Float Specific Gravity
0.45
Switch Function
Selectable
Height
3.38 in.
Switch Type
Seamless Formed Floats, 22 Gauge, 24 in. Leads
Item
Liquid Level Switch
Tank Connection Size
1/4 in. NPT
Maximum Current
0.50A
Type
Liquid Level
Maximum Pressure
150 psi
VA Rating
60
Maximum Temperature (Deg. C)
105
Width
1-1/4 in.
Maximum Voltage
240 V
Wire Gauge
22 AWG
Mfr. Part Number
M4300
Wire Lead
24
General
Operating Temp. Range
221°F Max
Standards
UL, CSA, CE

Product Description

This switch mounts on the top and bottom surfaces of a tank or vessel to actuate High/Low alarms or controls for motor starters, contactors, solenoids, and relays. The encapsulated, dependable, magnetically coupled dry reed switch is designed to deliver more than 5 million switching cycles at rated electrical load.
