COXREELS

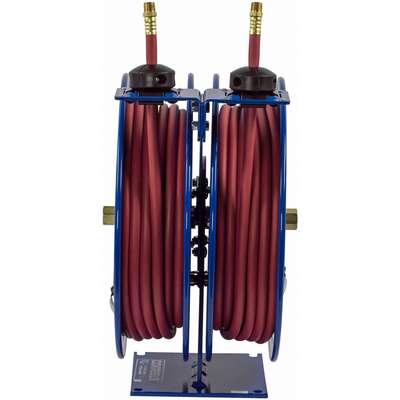

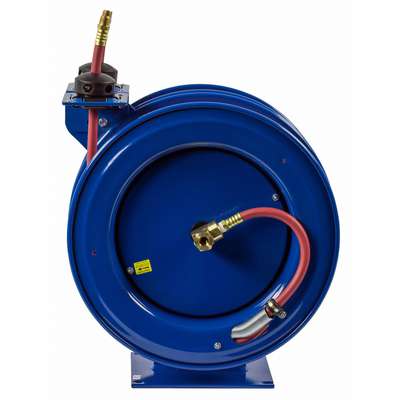

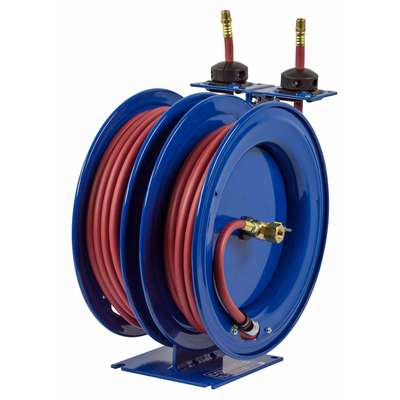

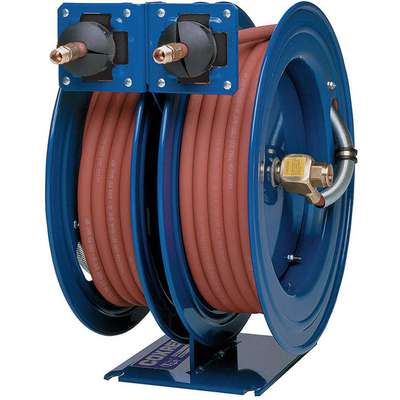

Combination Air/Water Reel, 300 psi, 1/4", Hose Length: 50 ft., AC Cord Length: Not Included

Hover over image to magnify
Reel,Dual Purpose,Spring
PI_Asset_965831
PI_Asset_965832
PI_Asset_965833
PI_Asset_965834
PI_Asset_965835
Reel,Dual Purpose,Spring
PI_Asset_965831
PI_Asset_965832
PI_Asset_965833
PI_Asset_965834
PI_Asset_965835
Combination Air/Water Reel, 300 psi, 1/4", Hose Length: 50 ft., AC Cord Length: Not Included Video
Combination Air/Water Reel, 300 psi, 1/4", Hose Length: 50 ft., AC Cord Length: Not Included Video
Combination Air/Water Reel, 300 psi, 1/4", Hose Length: 50 ft., AC Cord Length: Not Included Video
Combination Air/Water Reel, 300 psi, 1/4", Hose Length: 50 ft., AC Cord Length: Not Included Video

#915501-5 | Pkg Qty: 1

$786.19 pkg | $786.19 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Air Consumption
scfm
Maximum Temperature (Deg. F)
150
Bearings
Permanently Lubricated
Mfr. Part Number
C-LP-150-150
Brand
COXREELS
Minimum Operating Temperature
-15 deg. F
Drive Type
Spring Return
Mounting Location
Bench, Floor, Truck, Wall
Duty Rating
Heavy Duty
Number of Conductors
0
Enclosed
No
Number of Guide Arms
Single Arm
Finish
Powder Coated
Number of Outlets
2
Fitting Size
1/4 in. x 1/4 in.
Overall Dimensions
17 in. L x 10-1/2 in. W x 18-5/8 in. H
Fitting Type
NPT x NPT
Overall Height
18-5/8 in.
Hose Capacity
50 ft. (1/4 in ID)
Overall Length
17-1/4 in.
Hose Ends
1/4 in. MNPT x 1/4 in. MNPT
Overall Width
10-1/2 in.
Hose Included
Yes
Package Quantity
1
Hose Inside Diameter
1/4 in.
Pedestal Type
Single Pedestal
Hose Length
50 ft.
Reel Color
Blue
Hose Material
PVC
Reel Diameter
17 in.
Hose Reel Group
Combination Cord and Hose Reels
Reel Inlet
1/4 in. (F)NPT
Housing Material
Steel
Reel Material
Steel
Includes Hose
Yes
Reel Width
10-1/2 in.
Item
Combination Air/Water Reel
Seal Material
Nitrile
Latch
Locking
Seal Type
Nitrile
Latch Type
Locking
Shipping Weight
75 lb.
Length
17-1/4 in.
Speed Limited Retraction
No
Maximum Operating Temperature
150 deg. F
Type
Dual Purpose
Maximum Pressure
300 psi
Width
10-1/2 in.
Maximum Temperature
150 deg. F
General
Base Motion Type
Stationary
Hose 2 Length
50 ft
Bearing Construction
Permanently Lubricated
Hose 2 Outside Diameter
1/2 in
Combination Type
Air/Water
Hose 2 Tube Material
PVC
Features
1 in. Solid Steel Axle, Chip Resistant CPC Powder Coat Finish, CNC Spun Discs with Strength Bead and Rolled Edge, Each Reel Operates independently, Heavy Gauge 1/4 in. Steel Base and Support Post For Maximum Stability, Single Pedestal Reel, Solid One Piece, Stainless Steel Ratchet Pawl and Spring
Hose End Configuration
1/4 in MNPT x 1/4 in MNPT
Fitting Gender
Male x Male
Hose Inside Dia.
1/4 in
Hose 1 Cover Material
PVC
Hose Outlet
1/4 in (M)NPT
Hose 1 Fitting A Gender
Male
Hose Reel Primary Application
Air
Hose 1 Fitting A Material
Brass
Hose Reel Product Group
Combination Air/Water Reel
Hose 1 Fitting A Size
1/4 in
Hose Reel Type
Wall Mount Hose Reel
Hose 1 Fitting A Type
NPT
Include Hose Stop
Yes
Hose 1 Fitting B Gender
Male
Includes
(2) Hose, (2) Hose Guard, (2) Hose Stop
Hose 1 Fitting B Material
Brass
Minimum Operating Pressure
0 psi
Hose 1 Fitting B Size
1/4 in
Mount Base Height
9 in
Hose 1 Fitting B Type
NPT
Mount Base Width
8 in
Hose 1 Inside Diameter
1/4 in
Mount Hole Diameter
1/2 in
Hose 1 Length
50 ft
Mounting Hole Center to Center Height
8 in
Hose 1 Outside Diameter
1/2 in
Mounting Hole Center to Center Width
9 in
Hose 1 Tube Material
PVC
Reel Finish
Powder Coated
Hose 2 Cover Material
PVC
Standards
CE
Hose 2 Fitting A Gender
Male
Swivel Inlet Gender
Female
Hose 2 Fitting A Material
Brass
Swivel Inlet Size
1/4 in
Hose 2 Fitting A Size
1/4 in
Swivel Inlet Thread Size
1/4 in - 18
Hose 2 Fitting A Type
NPT
Swivel Inlet Type
NPT
Hose 2 Fitting B Gender
Male
Swivel Material
Brass
Hose 2 Fitting B Material
Brass
Swivel Outlet Gender
Female
Hose 2 Fitting B Size
1/4 in
Swivel Outlet Size
1/4 in
Hose 2 Fitting B Type
NPT
Swivel Outlet Thread Size
1/4 in - 18
Hose 2 Inside Diameter
1/4 in
Swivel Outlet Type
NPT

Product Description

Air or water combination spring-return hose reels combine two hose reels in one unit where each reel and hose operates independently and can carry air in one hose, water in the other hose. These combination hose reels are used where two hoses are needed to complete a job and where space is limited. The heavy-duty steel, single-mount base provides stability and is powder-coated for corrosion resistance. Two external fluid paths include 90° full-flow NPT swivel inlets and nitrile seals. These low-pressure (up to 500 psi) reels mount on a wall, floor, or overhead with one mounting pattern to save installation time, and include adjustable guide arms. These air/water combination hose reels connect air or water hoses to pneumatic tools, with air/water services, and in washdown applications.
