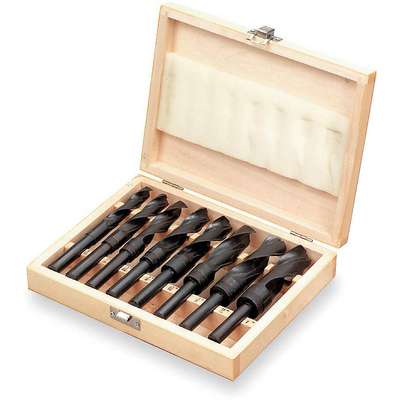

Westward Reduced Shank Drill Bit Set: 9/16 in Smallest Drill Bit Size, 1 in Largest Drill Bit Size

Hover over image to magnify
Silver/Deming Set,8 Pc,Hss,118
PI_Asset_1028595
PI_Asset_1028596
Silver/Deming Set,8 Pc,Hss,118
PI_Asset_1028595
PI_Asset_1028596
Westward Reduced Shank Drill Bit Set: 9/16 in Smallest Drill Bit Size, 1 in Largest Drill Bit Size Video

#915479-6 | Pkg Qty: 1

$333.17 pkg | $333.17 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
WESTWARD
Item
Reduced Shank Drill Bit Set
Cutting Direction
Right
List Number
Non-Listed
Dimension Type
Fractional Inch
Material
High Speed Steel
Drill Bit Case Type
Metal Index
Mfr. Part Number
4UM96
Drill Bit Dimension Type
Fractional Inch
Number of Flutes
2
Drill Bit Finish
Black Oxide
Number of Pieces
8
Drill Bit Material
High Speed Steel
Overall Length
6 in.
Drill Bit Point Angle
118 deg.
Package Quantity
1
Drill Bit Size
9/16 in.-1 in. by 1/16 in.
Point Type
Conventional Point
Drill Bit Sizes Included
9/16 in., 5/8 in., 11/16 in., 3/4 in., 13/16 in., 7/8 in., 15/16 in., 1 in.
Shank Diameter
1/2 in.
Finish
Black Oxide
Shank Length
2-7/8 in.
Flute Length
3-1/8 in.
Shank Type
Round
Flute Type
Spiral
Shipping Weight
3.46 lb.
Grade
General Purpose
Sizes Included
9/16 in., 5/8 in., 11/16 in., 3/4 in., 13/16 in., 7/8 in., 15/16 in., 1 in.
Helix Angle
32 Degrees
Spiral Direction
Right Hand
General
Application
For Alloy And Carbon Steels, Aluminum, Brass, Bronze, Cast Iron, Nickel based Alloys, Plastic And Wood
Material Grade - Machining
General Purpose
Coolant Fed
Non-Coolant Through
Measurement System
Fractional Inch
Depth:Dia. Ratio
4xD
Number of Drill Bits
8
Drill Bit Grouping
Set
Primary Material Application ISO Code
P
Drill Bit Point Type
Conventional Point
Secondary Material Application
Cast Iron, Steel, Carbon Steel, Alloy Steel, Wrought Iron
Finish - Machining
Black Oxide
Secondary Material Application ISO Code
M
Includes
1 in, 11/16 in, 13/16 in, 15/16 in, 17/32 in, 19/32 in, 3/4 in, 5/8 in, 7/8 in, 9/16 in
Shank Dia.
1/2 in
Largest Drill Bit Size
1 in
Shank Type - Machining
Straight
Material - Machining
High Speed Steel
Smallest Drill Bit Size
9/16 in

Product Description

The reduced-shank drill bits in these sets have a black-oxide finish that retains lubricants to improve the bits' wear resistance and chip flow. Black-oxide bits should only be used for drilling ferrous metals. These bits are made from high-speed steel. They provide more flexibility and absorb more shock and vibration than cobalt drill bits, making them suitable for use in manual drilling machines and handheld power tools. They may leave a rough finish on the hole. These sets contain multiple drill bits in a range of sizes.
