Home All Products Pneumatics Pneumatic Hoses Multipurpose Air Hose SKU: 915421
Share
Print
APPROVED SUPPLIER

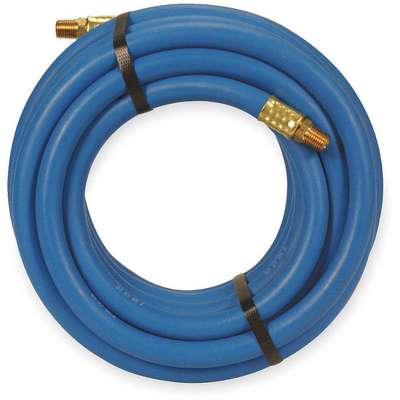

Air Hose: 1/2 in Hose Inside Dia., Blue, Brass 1/2 in MNPT x Brass 1/2 in MNPT, PVC, PVC

Hover over image to magnify
Multipurpose Air Hose,1/2 In.,
Multipurpose Air Hose,1/2 In.,

#915421 | Pkg Qty: 1

$102.97 pkg | $102.97 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
APPROVED SUPPLIER
Item
Air Hose
Color Family
Blue
Maximum Pressure
300 psi
Coupled Assembly/Bulk
Coupled Assembly
Mfr. Part Number
20307591
Cover Material
PVC
Outside Diameter
3/4 in.
Fitting Material
Brass
Package Quantity
1
Fitting Size
1/2 in. x 1/2 in.
Shipping Weight
8.9 lb.
Fitting Type
MNPT x MNPT
Subgroup | Pneumatic Hose
Multipurpose Air Hose
Hose Length
50 ft.
Temperature Range
-10 deg. F to 158 deg. F
Hose Media
Air
Tube Material
PVC
Inside Diameter
1/2 in.
General
Coupling Material
Brass
Hose Fittings
Brass 1/2 in MNPT x Brass 1/2 in MNPT
For Media Type
Air, Bleach, Calcium Chloride, Carbon Dioxide, Ethanol, Ethylene Glycol, Glycerin, Heptane, Hexane, Isopropanol, Methanol, Nitric Acid, Nitrogen Gas, Parrafins (Wax), Potassium Hydroxide (50%), Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide, Solvents, Sulfuric Acid, Water
Hose Outside Dia.
3/4 in
Hose Configuration
Coupled Assembly
Hose Tube Material
PVC
Hose Cover Material
PVC
Max. Working Pressure @ 70 F
300 psi
Hose Fitting A Material
Brass
Not Recommended Chemicals
Acetic Acid (Glacial), Acetone, Ammonium Hydroxide, Biodiesel, Chromic Acid 10%, Chromic Acid 30%, Chromic Acid 5%, Chromic Acid 50%, Cyclohexane, DEF, Diesel Fuel, Dry Food, E85, Ethyl Acetate, Formaldehyde, Formaldehyde 40%, Formic Acid, Fuel Oil, Gasoline, Hydraulic Fluid (Petroleum), Hydraulic Fluid (Synthetic), Hydrochloric/Muriatic Acid (100%), Hydrochloric/Muriatic Acid (20%), Hydrochloric/Muriatic Acid (37%), Hydrofluoric Acid (20%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Hydrogen Peroxide, Kerosene, LP Gas, Lubricated Air, Methyl Chloride, Methyl Ethyl Ketone (MEK), Motor Oil, Naphtha, Natural Gas, Nitric Acid (20% Solution), Nitric Acid (50% Solution), Nitric Acid (Concentrated Solution), Oxygen, Phosphoric Acid (40% Solution), Refrigerant R-12, Refrigerant R-134a, Refrigerant R-22, Refrigerant R-404A, Refrigerant R-407C, Refrigerant R-502, Steam, Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%), Toluene, Trichlorethylene (50%), Turpentine, Xylene
Hose Fitting A Type
MNPT
Safety Factor
4:1
Hose Fitting B Material
Brass
Standards
RMA Class B
Hose Fitting B Type
MNPT

Product Description

PVC (polyvinyl chloride) air hose assemblies with PVC covers are used for carrying air, water, and various spray solutions to tools and equipment in industrial, construction, and agricultural hand-spraying applications. The hoses have a PVC tube and a PVC cover that resist many chemicals and provide moderate resistance to oils. These hoses are lightweight and flexible, which minimizes the effort it takes to lift or move the hose. Their PVC cover will not mark surfaces it comes in contact with.

Air hose assemblies come with fittings installed on both ends of the hose for connecting the hose to pneumatic tools and equipment. Also known as pneumatic hoses or air compressor hoses, air hoses are used to carry compressed air to tools and equipment. These hoses are uncoiled and can be stored on a reel to keep them out of the way when not in use.
