HUBBELL WIRING DEVICE-KELLEMS

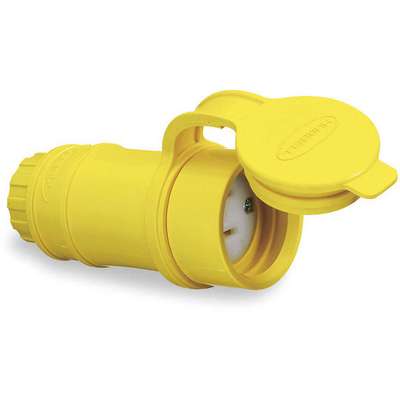

Hubbell Wiring Device-Kellems 15 Amp General Grade Standard Watertight Straight Blade Connector, 5-15R NEMA Configuration, Yellow
Hover over image to magnify
#915390-6 | Pkg Qty: 1
$57.39 pkg | $57.39 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amperage
15 A
Mfr. Part Number
HBL15W47
Amps
15 A
Minimum Operating Temperature
-40 °C
Antimicrobial
No
Minimum Wire Size
18 AWG
Brand
HUBBELL WIRING DEVICE-KELLEMS
NEMA Configuration - Plugs & Connectors
5-15
Cap Type
Press-On Cap
NEMA Plug Configuration
5-15R
Color Family
Yellow
NEMA Receptacle Configuration
5-15R
Connection Orientation
Straight
Number of Poles
2
Contact Material
Brass
Number of Wires
3
Cord Size
0.300 in to 0.655 in
Overall Length
4.03 in.
Corrosion Resistant
No
Package Quantity
1
Current Rating
15 A
Phase
Single
Description
Elastogrip, Grounding
Polarized
Yes
Grade
General
Power Indicating Light
No
Grounding
Grounded
Power Indicator
No
Horsepower
1/2 hp
Shipping Weight
.35 lb.
Housing Color
Yellow
Shrouded
Yes
Housing Material
Thermoplastic Elastomer
Standards
CSA C22.2 No. 42 File 280C, NEMA WD-6, UL 498 File E1706
IP Rating
IP55
Sub-Category
Connectors
Insulation Material
Nylon
Type
Watertight Elastogrip
Item
Watertight Straight Blade Connector
Voltage
125VAC
Material
PVC
Voltage Rating
125V AC
Material of Construction
PVC
Wire Connection Type
Screw Terminals
Maximum Operating Temperature
75 °C
Wiring Style
Standard
Maximum Wire Size
12 AWG
General
Amps - Plugs and Receptacles
15 A
NEMA Plug Configuration - Plugs and Receptacles
5-15R
Grade - Plugs and Receptacles
General
Sub-Category
Connectors
HP
1/2 hp
Voltage - Plugs and Receptacles
125V AC
Product Description
NEMA Straight-Blade Plugs and Connectors
- CSA Certified.
- Watertight Elastogrip®
- Thermoplastic elastomer housing with a nylon compression nut and neoprene bushing seals out water, dust, mud, and other contaminants. Provides seal at plug/connector interface. Watertight to NEMA 4.
Expertly Selected Product Pairings
Item Barcode
Watertight Connector,5-15R,15A,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 1X977 | Watertight Connector,5- |
 | UNSPSC CODES | 39121421 | |
 | VMRS (ATA) CODES | 053-007-002 | Watertight Connector,5- |
