WESTWARD

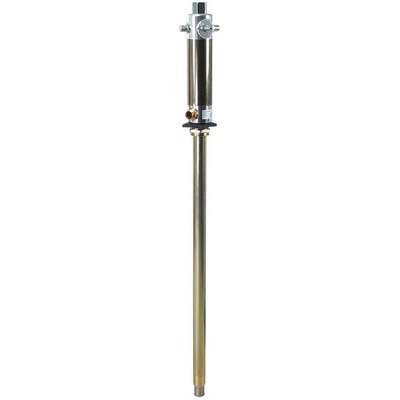

Westward Air Operated Drum Pump, Basic Pump without Discharge Hose, For Container Type Tote
Hover over image to magnify
#915319-3 | Pkg Qty: 1
$488.82 pkg | $488.82 ea
This item requires special shipping, additional charges may apply.
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Air Inlet
1/4 FNPT
Mfr. Part Number
5TCU1
Air Inlet Size
1/4 in. NPT
Minimum Air Inlet Pressure
70
Air Motor Size
2-1/2 in.
Outlet Pressure Maximum
345
Brand
WESTWARD
Package Quantity
1
Consumption @ 100 PSI
5 cfm
Power Source
Air
Container Size
275 gal.
Pump Ratio
3:1
Fluid Outlet Thread
1/2 MNPT
Pump for Multiple Outlets
Yes
Item
Oil Pump
Shipping Weight
17.64 lb.
Maximum Air Inlet PSI
115
Type
Air Operated
Maximum Output
7.5 gpm
Working Flow Maximum
7-1/2
General
Compatible Chemicals
Motor Oil
Max. Air Pressure
150 psi
Discharge Connection Type
MNPT
Max. Flow Rate
7.5 gpm
Discharge Tube Outlet ID
1/2 in
Max. Oil Flow
7.5 gpm
For Container Size
275 gal
Max. Outlet Pressure
450 psi
For Container Type
Tote
Min. Air Pressure
30 psi
For Media Type
Motor Oil
Not Recommended Chemicals
Antifreeze (Coolant), Biodiesel, Brake Fluid, DEF, Deionized Water, Diesel Fuel, Ethyl (Ethanol), Fertilizers, Fresh Water, Fungicides, Gasoline, Herbicides, Isopropyl (Isopropanol), Kerosene, Lithium Grease, Methyl Ethyl Ketone (MEK), Salt Water, Sodium Hypochlorite/Bleach (to 20%), Windshield Washer Fluid
For Use With
Oils Up To SAE 143
Pump Package Type
Basic Pump without Discharge Hose
Includes
Pump and Suction Tube
Working Flow Max. (GPM)
7.5
Includes Suction Tube
Yes
Product Description
This air-operated oil pump is designed for heavy-duty, high-flow applications such as oils up to SAE 143. Includes pump and suction tube.
Compliance & Restrictions
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Item Barcode
Oil Pump,Air Op,Pump Ratio 3:1,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 5TCU1 | Oil Pump,Air Op,Pump |
 | UNSPSC CODES | 40151524 | |
 | VMRS (ATA) CODES | 053-006-009 | Oil Pump,Air Op,Pump |
