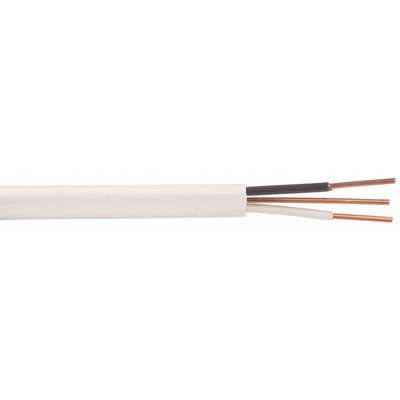

Romex 250 ft. Solid Nonmetallic Building Cable; Conductors: 2 with Ground, 14 AWG Wire Size, White

Hover over image to magnify
Nonmetallic Cable,14/2  Awg,
PI_Asset_1353883
Nonmetallic Cable,14/2  Awg,
PI_Asset_1353883

#915317-8 | Pkg Qty: 1

$164.13 pkg | $164.13 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
ROMEX
Mfr. Part Number
28827455
Cable Type
NM-B
Nominal Outside Diameter
0.360 in. x 0.162 in.
Cable/Wire Type
NM-B
Number of Conductors
2 with Ground
Color Family
White
Package Quantity
1
Conductor Material
THHN
Packaging
Coil
Description/Special Features
For indoor Use
Shipping Weight
14.4 lb.
Gauge/Conductor
14/2 with Ground
Spool Length
250 ft.
Indoor/Outdoor
Indoor
Stranded / Solid
Solid
Insulation Material
PVC
Temperature Rating
194F
Item
Nonmetallic Building Cable
Type
Nonmetallic
Jacket Color
White
Voltage
600 V
Jacket Material
PVC
Wire Color
Bare, Black, White
Jacket Type
PVC
Wire Size
14 AWG
Length
250 ft.
Wire and Cable Item
Nonmetallic Building Cable
Maximum Amps
15
Wire/Cable Jacket Material
PVC
Maximum Voltage
600 V
Wire/Cable Size
14 AWG
General
Application
For Indoor Use
Standards
UL/NEC
Cable Type - Wire and Cable
NM-B
Trade Designation
NM-B
Conductor Design
Solid
Wire Size - Wire and Cable
14 AWG
Jacket Material - Wire and Cable
PVC

Product Description

Nonmetallic sheathed (NM-B) building cable is a flexible electrical cable consisting of three or more wire conductors (including one for grounding) bundled inside a thermoplastic jacket, or sheath, that is nonconductive and heat-resistant. It's lighter than armored building cable, making it easier to handle, and its pliable sheathing is easier to unspool and straighten out. It is commonly used in residential and commercial applications to provide power for outlets, lighting, and appliances. Type NM-B cable is for enclosed, interior wiring in dry locations only (typically within a wall, ceiling, or under a floor) and should not be used outdoors or anywhere it might get wet.

Building wire and cable carry electrical current from a power source to a device in a building, such as an outlet or light fixture. Building wire is typically run through conduit, cable trays, or raceways. Building cable consists of multiple strands of wire bundled inside a thermoplastic or metal sheath. Building wire and cable are typically used to run new circuits or extend old circuits inside walls and ceilings in commercial, industrial, and residential properties.
