IGUS

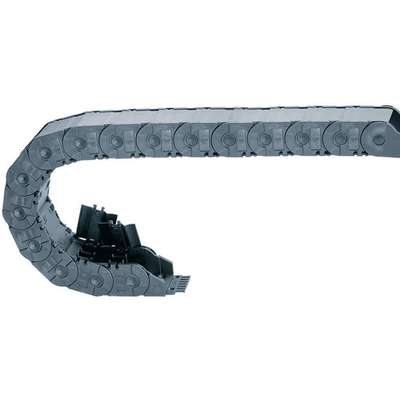

Igus Cable and Hose Carrier: 1 Channels, 3" Cavity W, 1.4" Cavity H, 12" L, Plastic

Hover over image to magnify
Cable Carrier,Med,Tube,OW3.
Cable Carrier,Med,Tube,OW3.

#915258-9 | Pkg Qty: 1

$52.60 pkg | $52.60 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Bend Radius
5.91 in. / 150mm
Loop Height
13.78 in./350.0mm
Brand
IGUS
Loop Length
25.59 in./650.0mm
Cavity Height
1.38 in./35.1mm
Mfr. Part Number
2680-07-150-0-1
Cavity Width
2.95 in.
Number of Links
6
Color Family
Black
Outside Width
91 mm
Height
50 mm
Package Quantity
1
Item
Cable and Hose Carrier
Shipping Weight
.87 lb.
Length
1 ft.
Style
Enclosed
Link to Link Pitch
2.20 in./55.6mm
Type
Medium
General
Accessory Width
3.6 in
Includes
No Bracket Included
Carrier Design
Enclosed
Max. Cable Dia.
1.3 in
Carrier Links Material
Igumid G
Max. Operating Temperature
248 °F
Crossbar Material
Igumid TE
Min. Operating Temperature
-40 °F
Crossbar Opening Design
Opens Inside
Mounting Bracket Design
Pivoting
Crossbar Style
Hinged Snap-On
Mounting Bracket Type
Fixed End, Moving End
Features
Modular Interior Separation
Number of Channels
1
Frame Stay
Fully Enclosed

Product Description

These enclosed cable and hose carriers are nonmetallic and ideal for general purpose applications. They're suitable for environments that aren't exposed to extreme conditions. They have an enclosed design that protects cable and hose against debris. These carriers open along the top to allow conductors to lay inside, so they don't have to be pulled along the length of the carrier. They're modular, allowing users to create customized carrier systems. These carriers protect and organize the cable or hose as they move along machines and equipment.

Expertly Selected Product Pairings

Mounting Brkt,Med,,OW3.58In /
$29.29 pkg | $29.29 ea
Item: 931065-1 | Pkg Qty: 1
Mounting Brkt,Med,,OW2.60In /
$27.89 pkg | $27.89 ea
Item: 935878-7 | Pkg Qty: 1
Mounting Brkt,Med,,OW4.57In /
$29.13 pkg | $29.13 ea
Item: 936790 | Pkg Qty: 1

Item Barcode
9152589
Cable Carrier,Med,Tube,OW3.
 NameItemDescription
Grainger DropshipGrainger Dropship6KGK4Cable Carrier,Med,
UNSPSC CODESUNSPSC CODES24101707
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009Cable Carrier,Med,
