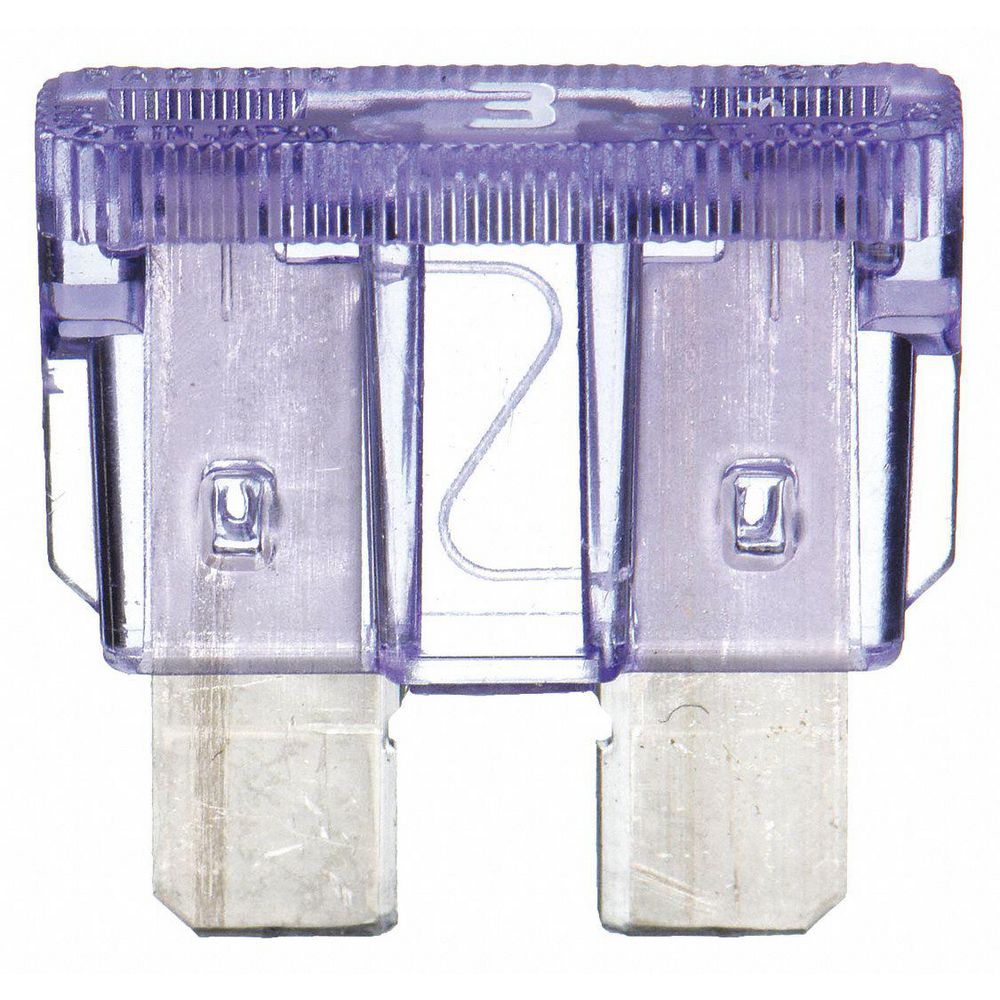

Bussmann 3A Fast Acting, Nonindicating Plastic Fuse with 32VDC Voltage Rating; ATC Series, Violet

Name: Bussmann 3A Fast Acting, Nonindicating Plastic Fuse with 32VDC Voltage Rating; ATC Series, Violet
Brand: BUSSMANN
SKU: 9150647
Price: 10 USD
Availability: InStock

Hover over image to magnify

Double tap image to magnify

#915064-7Pkg Qty: 5

$10.00 pkg | $2.00 ea

In Stock

Shipping to 43085

Expected to arrive Wed. Mar 26.

Technical Specifications

Key Specifications

AC Voltage Rating

Not Rated

Indicating / Nonindicating

Nonindicating

Amperage

3 A

Interrupting Rating

1kA at 32VDC

Body Material

Plastic

Item

Fuse

Body Style

Blade

Length

3/4 in.

Brand

BUSSMANN

Meets Standards

UL Recognized Guide JFHR2, File E56412

Color Code

Violet

Mfr. Part Number

ATC-3

Color Family

Purple

Package Quantity

Depth

7/32 in.

Rejection / Nonrejection

Nonrejection

Element

Single

Series

Atc

Functionally Equal To

Mersen/Ferraz Shawmut AF, Littelfuse 257, ATO

Shipping Weight

.05 lb.

Fuse Speed

Fast Acting

Speed

Fast Acting

Fuse Type

Automotive

Type

Automotive

Fuse Voltage Rating

32 VDC

Width

3/4 in.

General

Compatible Fuse Block Series

15600, ATC, BP, HHC, HHD, HHF, HHG

Fuse Size

3/4 in L x 3/4 in W x 13/64 in D

Equivalent Series

257, AF, ATC

Visual Indication

Nonindicating

Fits Fuse Block Style

Nonrejection

Product Description

Nonindicating automotive blade fuses open within seconds of being exposed to overloads and short circuits. They have no indicator for identifying a blown fuse, so they're sometimes used with an indicating fuse block or cover.

Automotive blade fuses are the most commonly used type of automotive fuse for protecting electrical systems and components against overcurrent. These 32VDC plug-in style fuses have a plastic housing with two blade-style contacts that fit into compatible fuse block or holder. Their housing is usually color-coded by amperage rating to help prevent installation of a mismatched fuse. The housing is also transparent for checking whether the fuse element is intact or has melted.
