CHICAGO-LATROBE

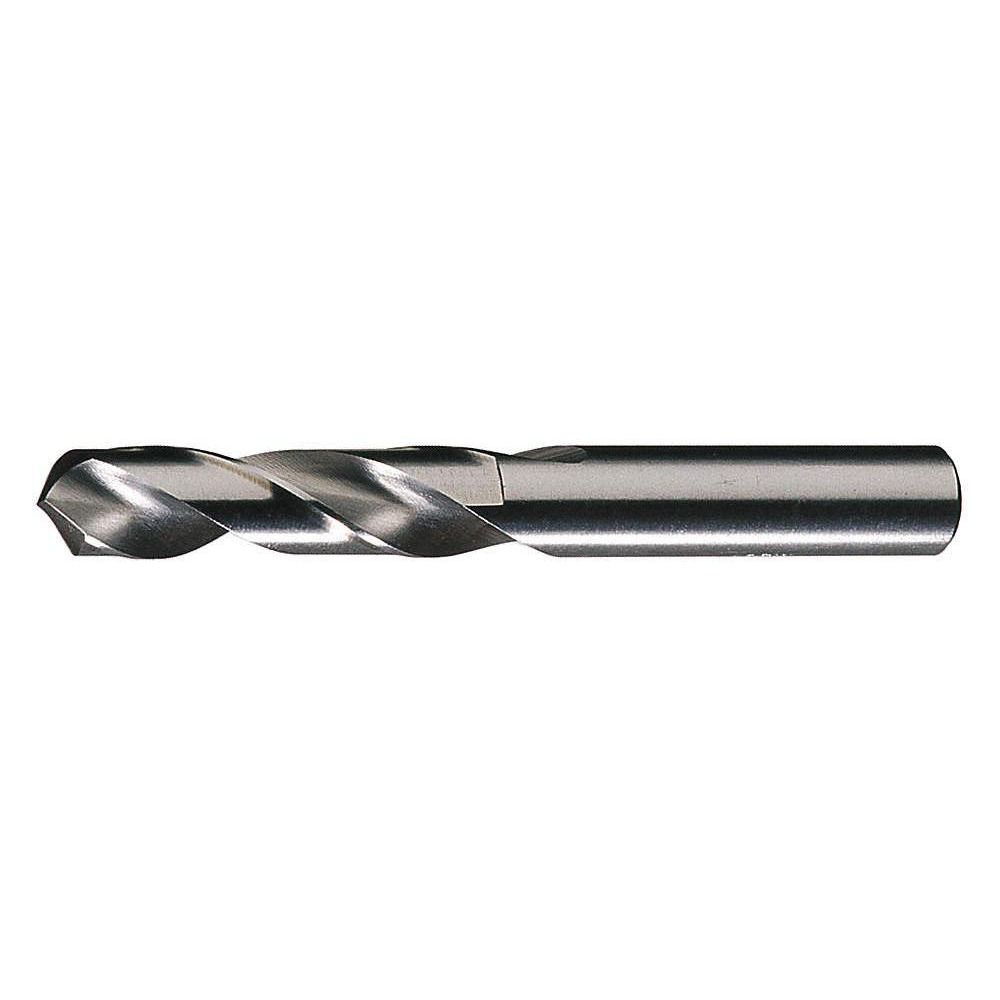

Stubby Length Drill Bit, Drill Bit Size 11/64", Drill Bit Point Angle 118 °, Conventional Point

Hover over image to magnify
Screw Machine Drill,List # 157,
Screw Machine Drill,List # 157,
Stubby Length Drill Bit, Drill Bit Size 11/64", Drill Bit Point Angle 118 °, Conventional Point Video
Double tap image to magnify
Screw Machine Drill,List # 157,
Screw Machine Drill,List # 157,
K2dVbC0kSKU

#914982-4Pkg Qty: 1

$2.38 pkg | $2.38 ea

In Stock

Shipping to 43085
Expected to arrive Tue. Apr 01.
|

Technical Specifications

Key Specifications
Brand
CHICAGO-LATROBE
Item
Screw Machine Drill Bit
Cutting Direction
Right
List Number
157
Cutting Direction
Right Hand
Maximum Drilling Depth
1-1/16 in.
Decimal Equivalent
0.1719
Mfr. Part Number
48511
Depth x Diameter Ratio
4xD
Number of Flutes
2
Dimension Type
Fractional Inch
Number of Pieces
1
Drill Bit Dimension Type
Fractional Inch
Overall Length
2-1/8 in.
Drill Bit Finish
Bright (Uncoated)
Pack Quantity
1
Drill Bit Material
High Speed Steel
Point Angle
118 deg.
Drill Bit Point Angle
118 deg.
Point Type
General Purpose
Drill Bit Size
11/64 in.
Series
157
Drill Point Length
0.0516 in.
Shank Diameter
11/64 in.
Finish
Bright
Shank Length
1-1/16 in.
Flute Length
1-1/16 in.
Shipping Weight
.57 lb.
Flute Type
Spiral
Sizes Included
11/64 in.
Helix Angle
28 deg.
Spiral Direction
Right Hand
General
Application
For Use on Alloy Steel, Carbon Steel, Plastic and Cast Iron Materials.
Drill Length Class
Screw Machine Length
Drill Bit Grouping
Individual
Primary Material Application ISO Code
K, N, P
Drill Bit Point Type
Conventional Point
Shank Type - Machining
Straight
Drill Diameter Tolerance
+0.0000 in /-0.0007 in

Product Description

These drill bits have a bright finish that is not affected when the bits' cutting edges are resharpened. Spiral-flute drill bits evacuate chips as the bits drill into a workpiece.
