Home All Products Pipe, Tubing & Fittings Tube Fittings Push to Connect Tube Fittings SKU: 914927-1
Share
Print
LEGRIS

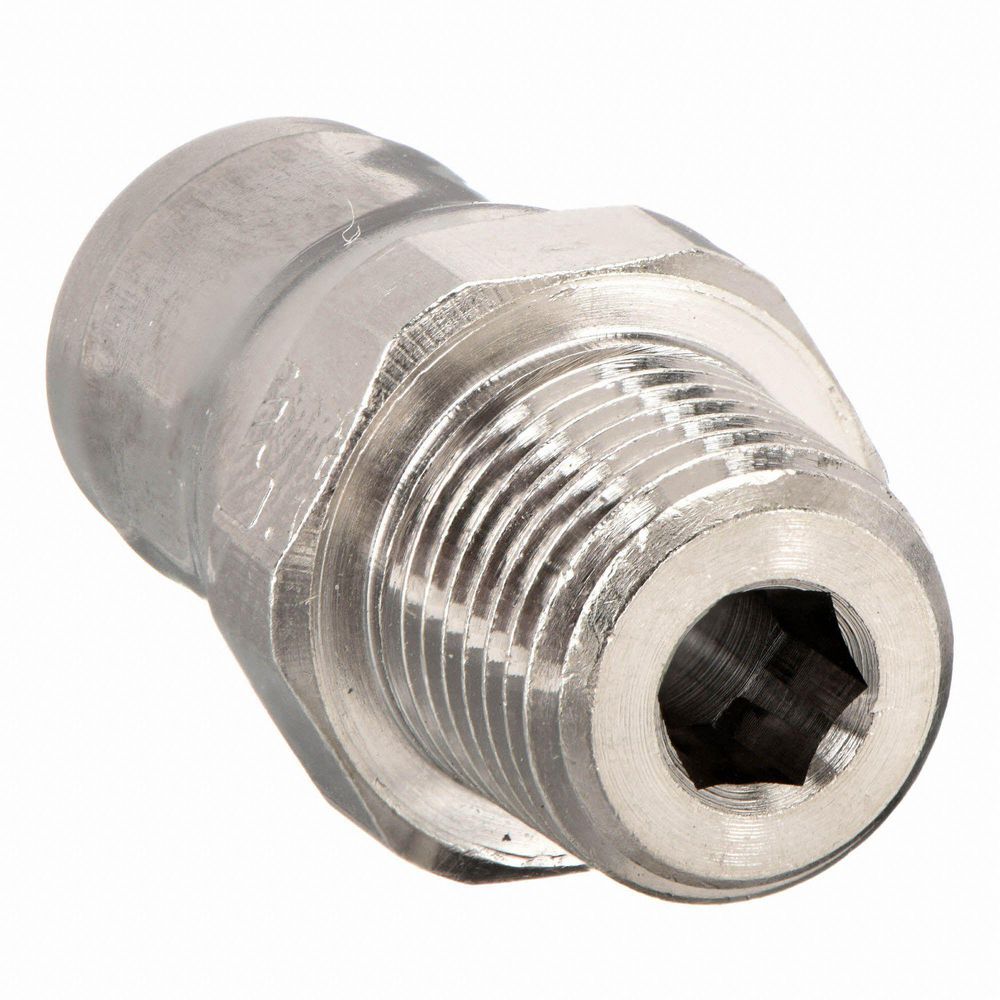

Male Connector: Nickel Plated Brass, Push-to-Connect x MBSPT, For 4 mm Tube OD, 1/4 in Pipe Size

Hover over image to magnify
Male Connector,Tube x Bspt,4mm
PI_Asset_1767410
Male Connector,Tube x Bspt,4mm
PI_Asset_1767410
Double tap image to magnify
Male Connector,Tube x Bspt,4mm
3ZNU3_1
Male Connector,Tube x Bspt,4mm
3ZNU3_1

#914927-1Pkg Qty: 1

$11.63 pkg | $11.63 ea

In Stock

Shipping to 43085
Expected to arrive Thu. Mar 27.
|

Technical Specifications

Key Specifications
Basic Fitting Material
Metal
Item
Male Connector
Basic Fitting Shape
Adapter
Mfr. Part Number
3675 04 13
Brand
LEGRIS
Package Quantity
1
Color Family
Silver
Shipping Weight
.03 lb.
Hex Size
14 mm
Tube Size
5/32 in.
General
Compatible Tube Hardness
95 Shore A
Fitting Pipe Size
1/4 in
End Connection Type
Push-to-Connect, Threaded
Fitting Side A Tube Outer Diameter
4 mm
Finish/Coating
Nickel-Plated
Fitting Side B Pipe Size
1/4 in
Fitting Body Material
Nickel-Plated Brass
Release Ring Material
FKM

Product Description

FDA approved for use in food processing applications, this LEGRIS male connector is easy to install, connect, disconnect, and features high phosphorus chemical nickel plating that resists abrasion, chemicals, and corrosion. Fitting is ideal for aggressive environments such as in welding applications where fittings must remain intact even if hit by weld spatter.

Documents

Item Barcode

9149271
Male Connector,Tube x Bspt,4mm

For more product information by email, click here
