EATON

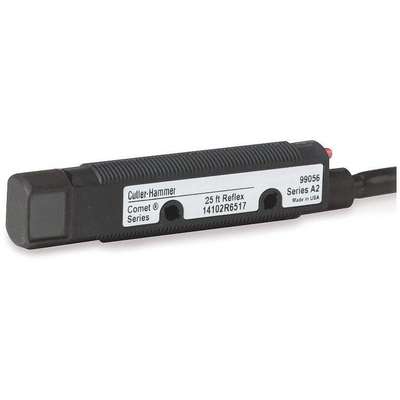

Eaton 76mm Retroreflective Cylindrical Photoelectric Sensor; Max. Sensing Distance: 4.5m
Hover over image to magnify
#914794-6 | Pkg Qty: 1
$352.90 pkg | $352.90 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Body Material
Solid Polyurethane
NEMA Rating
1, 2, 3, 4, 4X, 6, 12, 13
Brand
EATON
Operating Frequency
500 Hz
Cable Connection
4 Pin Micro DC
Operating Modes
Selectable Light On/Dark On
Circuit Type
NPN/PNP
Operating Temperature Range
-4 deg. C to 7 deg. C
Depth
0.47 in.
Package Quantity
1
Description/Special Features
Right Angle Viewing
Power Requirement
10 to 30VDC
Diameter
18 mm
Response Time
1 msec
Electrical Connection
4-Pin Micro Connector
Sensing Method
Retroreflective
IP Rating
69K
Shape
Cylindrical
Item
Cylindrical Photoelectric Sensor
Shipping Weight
.22 lb.
Length
3 in.
Style
Cylindrical Photoelectric Sensor
Light Source
Red LED
Temperature Range (Deg. F)
-40 to 158 deg. F
Maximum Amps
100m
Type
Retroreflective
Maximum Load Current
250mA
Voltage Range
10-30 VDC
Maximum Sensing Distance
4500mm
Warranty
2ACC6
Mfr. Part Number
14102RQD07
Width
4.01 in.
Minimum Object Size
Adjustable By Changing Gain
General
Circuit Type - Cylindrical Photoelectric Sensor
NPN/PNP
Operating Temp. Range
-40° to 70°C
Diameter - Cylindrical Photoelectric Sensor
18 mm
Operation Mode
Selectable Light On/Dark On
Electrical Connection - Cylindrical Photoelectric Sensor
4-Pin Micro Connector
Power Requirement - Cylindrical Photoelectric Sensor
10 to 30V DC
Features
Right Angle Viewing, Short Circuit and Overload Protection
Sensing Method - Cylindrical Photoelectric Sensor
Retroreflective
Length - Cylindrical Photoelectric Sensor
76 mm
Special Features
Right Angle Viewing
Max. Sensing Distance - Cylindrical Photoelectric Sensor
4.5 m
Standards
CE Approval, C
Maximum Sensing Distance - Photoelectric Sensor
4.5m
Style - Cylindrical Photoelectric Sensor
Cylindrical Photoelectric Sensor
Operating Mode - Photoelectric Sensor
Selectable Light On/Dark On
Product Description
This thru-beam sensor transmits infrared and visible red light between its source and detector on opposite sides of a detection zone. The switch will actuate when this beam of light is either blocked (when set for dark operation), or completed (light operation).
Expertly Selected Product Pairings
Documents
Item Barcode
Photoelectric Sensor,15 Ft,Pnp/
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 2XCH9 | Photoelectri c Sensor,15 |
 | UNSPSC CODES | 39121528 | |
 | VMRS (ATA) CODES | 034-000-000 | Photoelectri c Sensor,15 |
