DAYTON

Hand Operated Drum Pump: Rotary, 15 gal_30 gal_55 gal For Container Size, Includes Spout

Hover over image to magnify

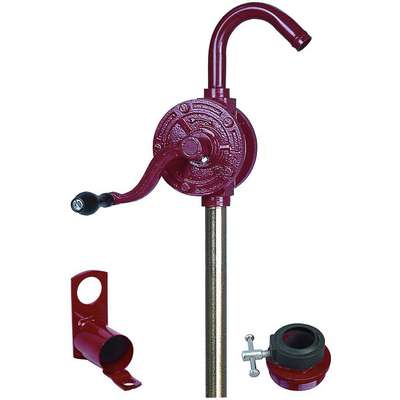

Hand Drum Pump,Rotary,Cast
PI_Asset_1369958
Hand Drum Pump,Rotary,Cast
PI_Asset_1369958

#914759-4 | Pkg Qty: 1

$97.11 pkg | $97.11 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Action Type
Rotary
Metered
No
Adapter Diameter
2 in.
Mfr. Part Number
40M295
Adapter Material
Cast Iron
Mfr. Warranty Length
1 yr.
Adapter Type
2" Bung with Rubber Boot
Ounces per Stroke
8 oz.
Brand
DAYTON
Outlet Size
1"
Discharge Tube Length
7"
Overall Length
50-7/8 in.
Discharge Tube Outlet ID Size
7/8"
Package Quantity
1
Discharge Tube Outlet Outside Diameter
1"
Power Source
Hand Operated
Discharge Tubing Material
Steel
Pump Body Material
Cast Iron
For Use On
15 to 55 gal Drums
Seal Material
Viton
Hand Operated Pump Action Type
Hand Operated Rotary Pumps
Shipping Weight
13.33 lb.
Housing Material
Cast Iron
Suction Tube Length
41 in.
Inlet Size
1"
Suction Tube Outlet Outside Diameter
1-1/4 in.
Item
Hand Operated Drum Pump
Suction Tube Type
3-Piece Rigid Pipe
Maximum Liquid Temperature
140°F
Type
Rotary Action
Maximum Viscosity
5000 SSU
Wetted Materials
Cast Iron, Steel, Viton
General
Application
For Dispensing Diesel, Kerosene, Heating Oils, Motor Oils, Gasoline Lubricating Oils (up to SAE 90), and Other Non Corrosive Media.
Includes
2 in Bung, Discharge Spout, Pump Body, Rubber Boot, Suction Tube
Bung Connection Dia.
2 in
Includes Bung Adapter
Yes
Compatible Chemicals
Automatic Transmission Fluid, Diesel Fuel, Kerosene, Motor Oil
Includes Spout
Yes
Discharge Tube Outlet ID
7/8 in
Includes Suction Tube
Yes
Discharge Tube Outlet OD
1 in
Max. Flow Rate
8 oz per stroke
Features
Dual Directional Operation Allows Pump to Empty and Refill Containers
Max. Fluid Temp.
140 Degrees F
For Container Size
15 gal, 30 gal, 55 gal
Not Recommended Chemicals
Antifreeze (Coolant), Deionized Water, Ethyl (Ethanol), Fresh Water, Gasoline, Isopropyl (Isopropanol), Lithium Grease, Methyl Ethyl Ketone (MEK), Salt Water, Sodium Hypochlorite/Bleach (to 20%)
For Container Type
Bucket, Drum, Pail
Pump Package Type
Basic Pump with Spout
For Media Type
Automatic Transmission Fluid, Diesel Fuel, Kerosene, Motor Oil
Special Features
Dual Directional Operation Allows Pump to Empty and Refill Containers
For Use With
For Dispensing Diesel, Kerosene, Heating Oils, Motor Oils, and Other Non Corrosive Media
Suction Tube OD
1 1/4 in
Housing Material - Pumps
Cast Iron

Product Description

Automotive fluids, fuel, and oil hand drum pumps are designed for dispensing and transferring small volumes of fluids such as diesel fuel, coolant, washer fluid, power steering fluid, transmission fluid, and engine oil. These pumps are commonly used during automotive service and fleet maintenance to drain fuel tanks and remove spent fluids from vehicles and engine-powered machinery.

Compliance & Restrictions

California Proposition 65 Icon
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Item Barcode
9147594
Hand Drum Pump,Rotary,Cast
 NameItemDescription
Grainger DropshipGrainger Dropship40M295Hand Drum Pump,Rotary,
UNSPSC CODESUNSPSC CODES40151529
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009Hand Drum Pump,Rotary,
