PHILIPS ADVANCE
Philips Advance High Pressure Sodium HID Ballast Kit, 1000 Max. Lamp Watts, 120/208/240/277/480 V, Pulse Ballast Sta
Hover over image to magnify
#914748-7 | Pkg Qty: 1
$372.04 pkg | $372.04 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
ANSI Code
S52
Lamp Type
High Pressure Sodium
Brand
PHILIPS ADVANCE
Lamp Watts
1000 W
Frequency
60 Hz
Length
6 in.
Height
4-7/16 in.
Mfr. Part Number
71A8753-001
Housing Material
Steel
Number of Lamps
1
Hz
60
Package Quantity
1
Input Voltage
120/208/240/277/480 VAC
Shipping Weight
30.8 lb.
Input Watts
1100 in.
Start Type
Pulse
Insulation Class
H
Voltage
120/208/240/277/480 V
Item
HID Ballast Kit
Width
6 in.
General
Ballast Bulb Type
High Pressure Sodium
Min. Starting Temp.
-40 Degrees F
Ballast Factor
1
Number of Bulbs Supported
1
Ballast Start Type
Pulse
Operating Amps @ 120V
9.28 A
Brand and Series
Advance
Operating Amps @ 208V
5.32 A

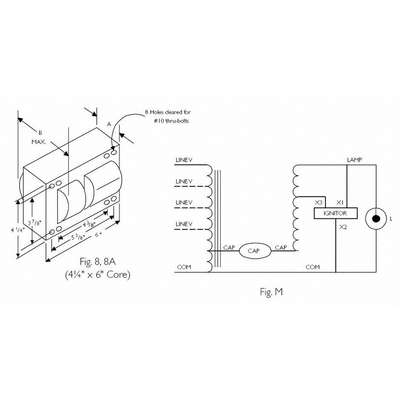

Figure Number
A29
Operating Amps @ 240V
4.68 A
Footnotes
2
Operating Amps @ 277V
4.03 A
Includes
Capacitor, Coil, Core, Hardware, Mounting Bracket
Operating Amps @ 480V
2.31 A
Max. Bulb Watts
1,000 W
Standards
CSA Certificate, RoHS Compliant, ULR
Min. Bulb Watts
1,000 W
Starter Required
Yes
Product Description
High-pressure-sodium ballast kits include parts for replacing a ballast and its coordinating components in lighting fixtures that use high-pressure-sodium HID bulbs.
