TB WOOD'S

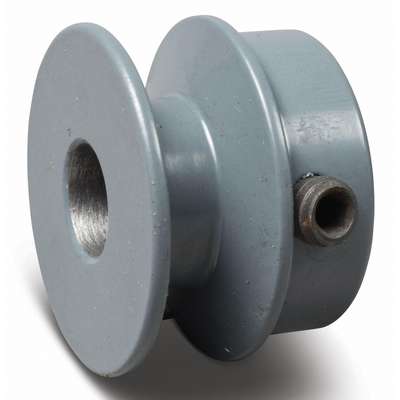

Tb Wood'S Standard V-Belt Pulley: 1 Grooves, 2.25" Pulley Outside Dia., 1/2" Pulley Bore Dia.

Hover over image to magnify
V-Belt Pulley,1/2"Fixed,2.
PI_Asset_1766674
V-Belt Pulley,1/2"Fixed,2.
PI_Asset_1766674
Double tap image to magnify
V-Belt Pulley,1/2"Fixed,2.
5RJJ3_1
V-Belt Pulley,1/2"Fixed,2.
5RJJ3_1

#914716-1Pkg Qty: 1

$17.46 pkg | $17.46 ea

In Stock

Shipping to 43085
Expected to arrive Thu. Mar 27.
|

Technical Specifications

Key Specifications
Brand
TB WOOD'S
Mfr. Part Number
AK2212
Construction
Solid
Package Quantity
1
Industry Number
AK2212
Shipping Weight
.53 lb.
Item
Standard V-Belt Pulley
General
3L Belt Pitch Dia.
1.66 in
Groove
1
3L Belt Pitch Dia. (In.)
1.66
Hub Projection
0.44 in
3L Pitch Diameter
1.91 in
Keyway Size Type
No Keyway
4L Pitch Diameter
2.25 in
Length through Bore
15/16 in
4L or A Belt Pitch Dia. (In.)
2
Material Fabrication
Cast
4L, A, or AX Belt Pitch Dia.
2 in
Maximum Bore Diameter
1 in
A Pitch Diameter
2.25 in
Number of Grooves
1
AX Pitch Diameter
2.25 in
Outside Dia.
2.25"
Bore Dia.
1/2"
Outside Dia. (In.)
2.25
Bore Dia. (In.)
1/2
Pitch
Dependant on Belt Selection
Bore Type
Fixed
Pitch Diameter
2.25 in
Face Width
0.66 in
Pitch Diameter for V-Belt Section
3L: 1.91 in / 4L: 2.25 in / A: 2.25 in
Fits Shaft Dia.
1/2 in
Pulley Bore Dia.
1/2 in
Fits Shaft Dia. (In.)
1/2
Pulley Bore Type
Fixed Bore
For Belt Family
Classical Cogged, Classical, Fractional Horsepower
Pulley Construction
Plain
For Belt Trade Size
3L, 4L, A, AX
Pulley Material
Cast Iron
For Use With
3L, 4L, A or AX Type V-Belts
Pulley Outside Dia.
2.25 in
For V-Belt Section
3L, 4L, A, AX
Set Screw Included
Yes
For V-Belt Type
Classical, Cogged
Setscrew
Standard

Product Description

TB WOOD'S® standard V-belt pulley is designed for use with V-belt section 3L, 4L, A, and AX. Efficient and lightweight. Standard keyway with setscrew.

  • Number of grooves: 1
  • Cast-iron construction
  • Fixed-bore

Documents

TB Wood's FHP Bore To Size Sheaves Installation Instructions
