SIEMENS

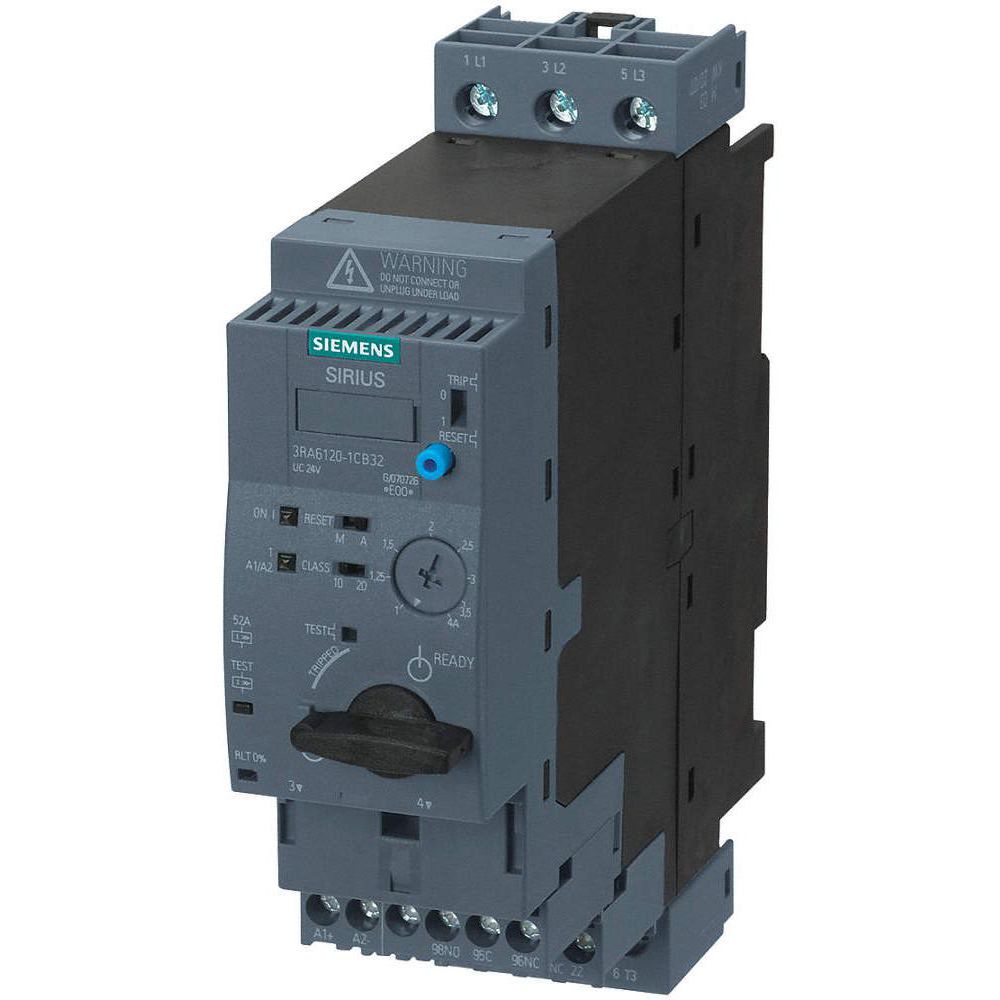

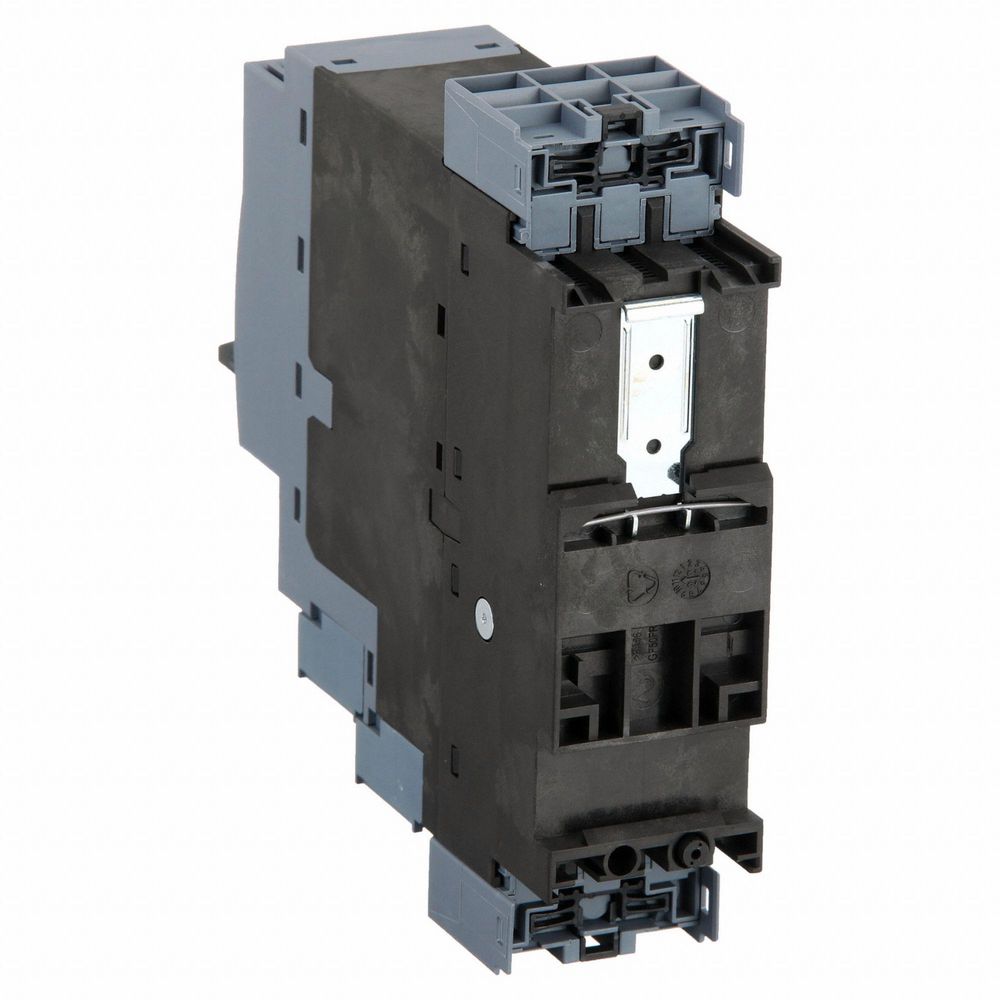

Siemens Reversing IEC Magnetic Motor Starter, 24VAC/DC, Overload Relay Amp Setting: 8.0 to 32.0

Hover over image to magnify
Magnetic Motor Starter,Iec,24V,
PI_Asset_3730897
Magnetic Motor Starter,Iec,24V,
PI_Asset_3730897
Double tap image to magnify
Magnetic Motor Starter,Iec,24V,
13A283-A3020-2_v2
Magnetic Motor Starter,Iec,24V,
13A283-A3020-2_v2

#914679-1Pkg Qty: 1

$920.39 pkg | $920.39 ea

In Stock

Shipping to 43085
Expected to arrive Tue. Mar 25.
|

Technical Specifications

Key Specifications
Accessory Group
Auxiliary Contacts, Manual Starter Accessory
Hz
50/60
Action
Reversing
Item
IEC Magnetic Motor Starter
Amps AC
32.0 A
Mfr. Part Number
3RA6120-1EB32
Brand
SIEMENS
Number of Poles
3
Coil Volts
24 VAC/DC
Package Quantity
1
Depth
6-1/2 in.
Shipping Weight
3.35 lb.
Enclosure NEMA Rating
No Enclosure
Starter Type
IEC Style
Enclosure Type
Open
Type
All-in-one
Height
6.69 in.
Width
1.77 in.
General
Aux. Contact Configuration
1NO/1NC
HP @ 3 Phase - 460V
20
Auxiliary Contact Form
1NC/1NO
HP @ 3 Phase - 480V
20 hp
Features
End of Service Life indicator and Removable Terminals
HP @ 3 Phase - 575V
30 hp
HP @ 3 Phase - 208V
10 hp
Includes
End of Service Life Indicator and Removable Terminals
HP @ 3 Phase - 230V
10
Overload Relay Amp Setting
8.0 to 32.0
HP @ 3 Phase - 240V
10 hp
Standards
CCC, CSA, IEC, UL 508

Product Description

IEC Magnetic Motor Starter, Overload Relay Amp Setting 8.0 to 32.0, Coil Volts 24V AC/DC, Enclosure NEMA Rating No Enclosure, Auxiliary Contact Form 1NC/1NO, HP @ 3 Phase - 240V 10 hp, HP @ 3 Phase - 480V 20 hp, Action Reversing, Hz 50/60, Number of Poles 3, Amps AC 32.0 A, Width 1.77 in, Features End of Service Life Indicator and Removable Terminals, Includes End of Service Life Indicator and Removable Terminals, HP @ 3 Phase - 575V 30 hp, HP @ 3 Phase - 208V 10 hp, Height 6.69 in, Depth 6.5 in

Documents

Siemens 3RA6120-1EB32 Technical Data Sheet
