COXREELS

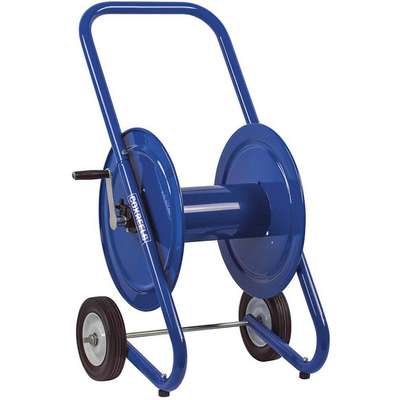

Hand Crank Hose Reel: 200 ft (3/8 in I.D.), 21 in L x 19 in W x 36 1/4 in H, Nitrile, Brass

Hover over image to magnify
Hand Crank Hose Reel,3/8x200
PI_Asset_971001
PI_Asset_971002
PI_Asset_971003
PI_Asset_971004
PI_Asset_971005
PI_Asset_971006
Hand Crank Hose Reel,3/8x200
PI_Asset_971001
PI_Asset_971002
PI_Asset_971003
PI_Asset_971004
PI_Asset_971005
PI_Asset_971006
Hand Crank Hose Reel: 200 ft (3/8 in I.D.), 21 in L x 19 in W x 36 1/4 in H, Nitrile, Brass Video
Hand Crank Hose Reel: 200 ft (3/8 in I.D.), 21 in L x 19 in W x 36 1/4 in H, Nitrile, Brass Video
Hand Crank Hose Reel: 200 ft (3/8 in I.D.), 21 in L x 19 in W x 36 1/4 in H, Nitrile, Brass Video
Hand Crank Hose Reel: 200 ft (3/8 in I.D.), 21 in L x 19 in W x 36 1/4 in H, Nitrile, Brass Video
Hand Crank Hose Reel: 200 ft (3/8 in I.D.), 21 in L x 19 in W x 36 1/4 in H, Nitrile, Brass Video
Hand Crank Hose Reel: 200 ft (3/8 in I.D.), 21 in L x 19 in W x 36 1/4 in H, Nitrile, Brass Video

#914640-7 | Pkg Qty: 1

$526.01 pkg | $526.01 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Air Consumption
scfm
Includes Gooseneck
No
Bearings
EPDM Bearings
Includes Hose
No
Brand
COXREELS
Item
Hand Crank Hose Reel
Color Family
Blue
Length
19 in.
Construction
Steel
Material
Steel
Drive Type
Hand
Maximum Pressure
4000 psi
Duty Rating
Medium Duty
Mfr. Part Number
117-3-200-DM
Enclosed
No
Mounting Location Type
Wall
Finish
Powder Coated
Overall Height
40 in.
Horsepower
None
Overall Length
19 in.
Hose Capacity
200 ft. (3/8 in I.D.)
Overall Width
20-3/8 in.
Hose Ends
3/8 in. (M)NPT
Package Quantity
1
Hose Included
No
Reel Inlet
3/8 in. (F)NPT
Hose Inside Diameter
3/8 in.
Reel Material
Steel
Hose Length
200 ft.
Seal Type
Nitrile
Hose Reel Group
Motor Driven and Hand Crank Hose Reels
Shipping Weight
37 lb.
Housing Material
Steel
General
Application
Air,Water,Oil,Washdown,Pressure Washing,Agricultural Spraying,Chemical Fluid Transfer
Not Included
Hose
Base Motion Type
Stationary
Number of Mount Holes
4
Bearing Construction
EPDM
Reel Finish
Powder Coated
Hose Inside Dia.
3/8 in
Swivel Inlet Gender
Female
Hose Outlet
3/8 in (M)NPT
Swivel Inlet Size
3/8 in
Hose Outside Dia.
5/8 in
Swivel Inlet Thread Size
3/8 in
Hose Reel Primary Application
Air, Chemical Fluid Transfer, Pest Control, Pressure Washer, Spraying Operation, Washdown, Water
Swivel Inlet Type
NPT
Hose Reel Product Group
Hand Crank Hose Reel
Swivel Material
Brass
Hose Reel Type
Dolly Mount Hose Reel
Swivel Outlet Gender
Female
Max. Pressure Rating
4000 psi
Swivel Outlet Size
3/8 in
Mount Base Height
17 1/2 in
Swivel Outlet Thread Size
3/8 in
Mount Base Width
12 in
Swivel Outlet Type
NPT
Mounting Hole Center to Center Height
3 in

Product Description

Dolly-mount hand-crank hose reels hold long lengths of hose and eliminate manually coiling and uncoiling hose. The heavy-gauge steel tube frame has a corrosion-resist finish, solid rubber tires for mobility, and removable handle for storage. The adjustable tension brake prevents freewheeling during operation or storage. These dolly-mount hand-crank hose reels are used with water or chemical hoses for washdowns, at construction sites, and for landscaping/gardening. Consider psi requirements when selecting a hose reel for specific applications.
