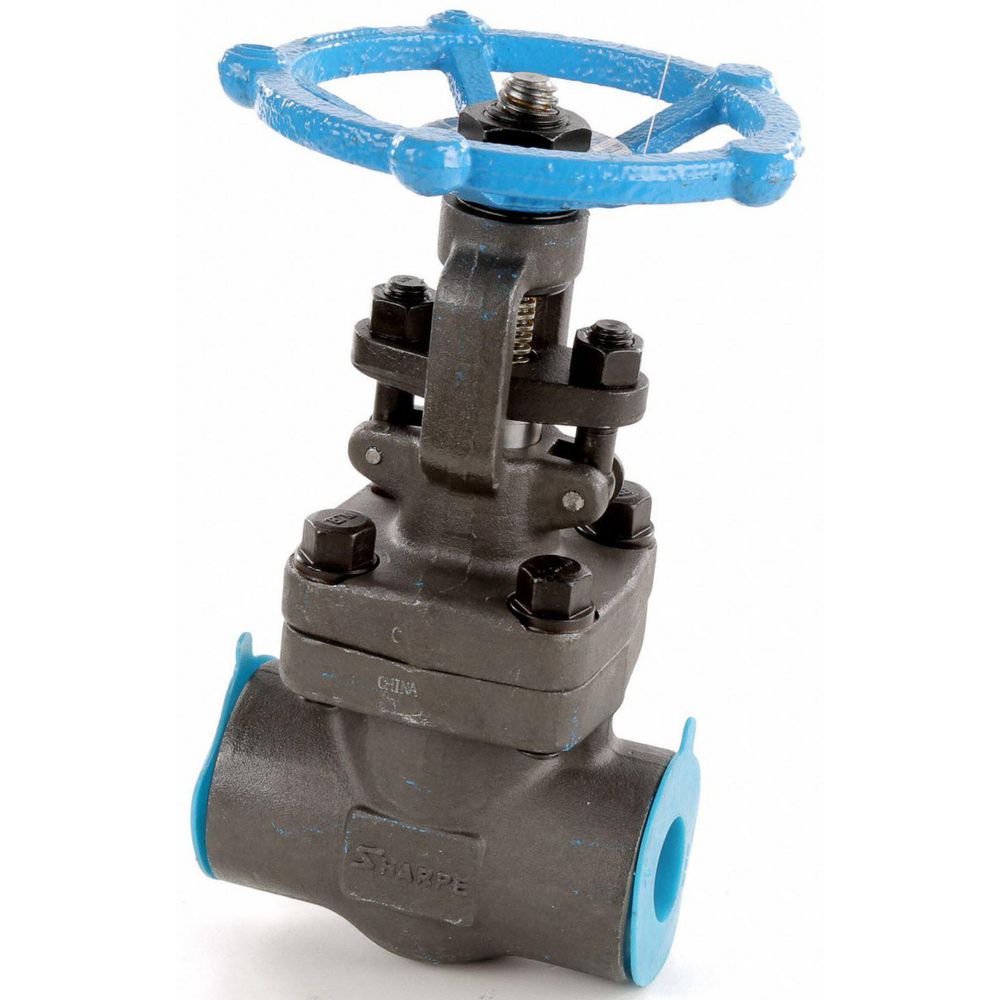

Class 800 FNPT Outside Stem and Yoke Gate Valve, Inlet to Outlet Length: 4-23/32", Pipe Size: 1-1/2

Hover over image to magnify
Gate Valve,Class 800,1-1/2 In.,
PI_Asset_1363873
Gate Valve,Class 800,1-1/2 In.,
PI_Asset_1363873
Double tap image to magnify
Gate Valve,Class 800,1-1/2 In.,
1PRH3_SS01_R01_C23
Gate Valve,Class 800,1-1/2 In.,
1PRH3_SS01_R01_C23

#914612-4Pkg Qty: 1

$328.38 pkg | $328.38 ea

In Stock

Shipping to 43085
Expected to arrive Tue. Apr 01.
|

Technical Specifications

Key Specifications
Body Material
Forged Carbon Steel
Mfr. Part Number
4371003800
Brand
APPROVED SUPPLIER
Package Quantity
1
Class
Class 800
Pipe Size
1-1/2 in.
Connection Type
FNPT
Shipping Weight
15.5 lb.
Handle Material
Carbon Steel
Stem Material
410 Stainless Steel
Handle Type
Hand Wheel
Stem Type
Rising
Item
Outside Stem and Yoke Gate Valve
General
Body Material - Valves
Forged Carbon Steel
Standards
API 602, BS 5352, ASTM A105, NACE MR-0175
Bonnet Style
Bolted
Top of Handle to Inlet Center
9 1/16 in
Inlet to Outlet Length
4 23/32 in
Valve Class
Class 800
Max. Water Pressure - CWP
1,975 psi
Valve Max. Fluid Temp.
850 Degrees F
Max. Working Steam Pressure - WSP
1,460 psi
Valve Stem Type
Rising
Pipe Size - Valves
1 1/2 in

Product Description

This gate valve can withstand high pressures and temperatures. It includes an outside screw and yoke and bolted bonnet.
