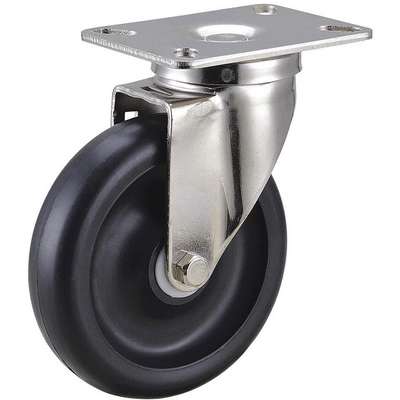

Light- Medium Duty, Swivel Debris-Resistant Long-Swivel-Life NSF-Listed Sanitary Plate Caster; 450 lb. Load Rating, 5" Wheel Dia.

Hover over image to magnify
Swivel Plate Caster,450 Lb,5
PI_Asset_1355433
Swivel Plate Caster,450 Lb,5
PI_Asset_1355433

#914593 | Pkg Qty: 1

$15.03 pkg | $15.03 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
APPROVED SUPPLIER
Item
Debris-Resistant Long-Swivel-Life NSF-Listed Sanitary Plate Caster
Caster Brake Included
No
Load Rating
450 lb.
Caster Brake Type
No Brake Included
Mfr. Part Number
33H924
Caster Core Material
Plastic
Mounting Bolt Diameter
5/16 in.
Caster Load Rating Range
Light- Medium Duty
Mounting Height
6-3/16 in.
Caster Plate Hole Pattern
A
Non-Marking
Yes
Caster Plate Size
3-1/8 in. x 4-1/8 in.
Number of Mounting Holes
4
Caster Raceway
Double Ball
Number of Wheels
1
Caster Swivel Lock Type
No Lock Included
Outside Bolt Hole Spacing
2-3/8 in. x 3-3/8 in.
Caster Wheel Bearings
Delrin
Package Quantity
1
Caster Wheel Shape
Standard
Plate Caster Sub-Type
Swivel
Caster Wheel/Tread Material
Polyolefin
Shipping Weight
2.25 lb.
Core Color
Black
Swivel Construction
Kingpin
Durometer
65 Shore D
Wheel Color
Black
Frame Finish
Nickel Plated
Wheel Diameter
5 in.
Frame Material
Steel
Wheel Width
1-1/4 in.
Includes Thread Guards
Yes
Wheel/Tread Hardness Rating
Hard
Inside Bolt Hole Spacing
1-3/4 in. x 3 in.
General
Application
Food Service Racks and Cases, Hospital Equipment, Hotel Equipment, Institutional Equipment, Laundry Trucks, Office Equipment, Stock Carts, Store Fixtures, Utility Carts
Mounting Plate Size
3 1/8 in x 4 1/8 in
Caster Max. Temp.
180°F
Mounting Plate Size (Bolt Hole Pattern)
3 1/8 in x 4 1/8 in (A)
Caster Min. Temp.
-20°F
Standards
NSF ListedANSI ICWM
Caster Plate Thickness
5/32"
Swivel Lock Type
No Lock Included
Caster Product Group
Swivel Caster
Swivel Raceway Type
Double Ball
Caster Temp. Range Available
Yes
Tread Shape
Standard
Includes
Top and Bottom Grease Seals, Dust Cover
Wheel Bearing Type
Delrin
Load Rating Range
300 to 999 lb
Wheel Core Material
Plastic
Mounting Bolt Dia.
5/16 in
Wheel/Tread Hardness
65 Shore D
Mounting Plate Bolt Hole Pattern
A

Product Description

Debris-resistant long-swivel-life light-duty NSF-listed sanitary plate casters have a dust cap that stops debris from entering the casters' swivel raceways and making it difficult for the caster to swivel. They also have double ball swivel bearings and swivel more smoothly than economy light-duty NSF-listed sanitary plate casters. These casters are suitable for use on carts, prep tables, racks, and other equipment used in food-service areas, food-manufacturing facilities, and other areas where the equipment will be transporting relatively light loads over smooth, flat surfaces. Sometimes known as institutional plate casters, these light-duty plate casters have a zinc-plated or nickel-plated steel frame.

NSF-listed sanitary plate casters are built to satisfy the National Sanitation Foundation's (NSF) rigorous testing requirements for casters that are used in environments where they will be exposed to frequent washdowns, oils, or chemicals. They are suitable for use in environments where sanitary conditions must be maintained. These casters have a mounting plate that installs onto the bottom of carts, prep tables, food-service equipment, racks, and similar items. They are available in swivel and rigid versions. The swivel casters can rotate 360°, allowing equipment to change directions while rolling. The rigid casters roll in a straight line. Two rigid plate casters will often be paired with two swivel casters to allow the equipment to both maneuver around curves and obstacles and maintain a straight course while rolling.
