HUBBELL WIRING DEVICE-KELLEMS

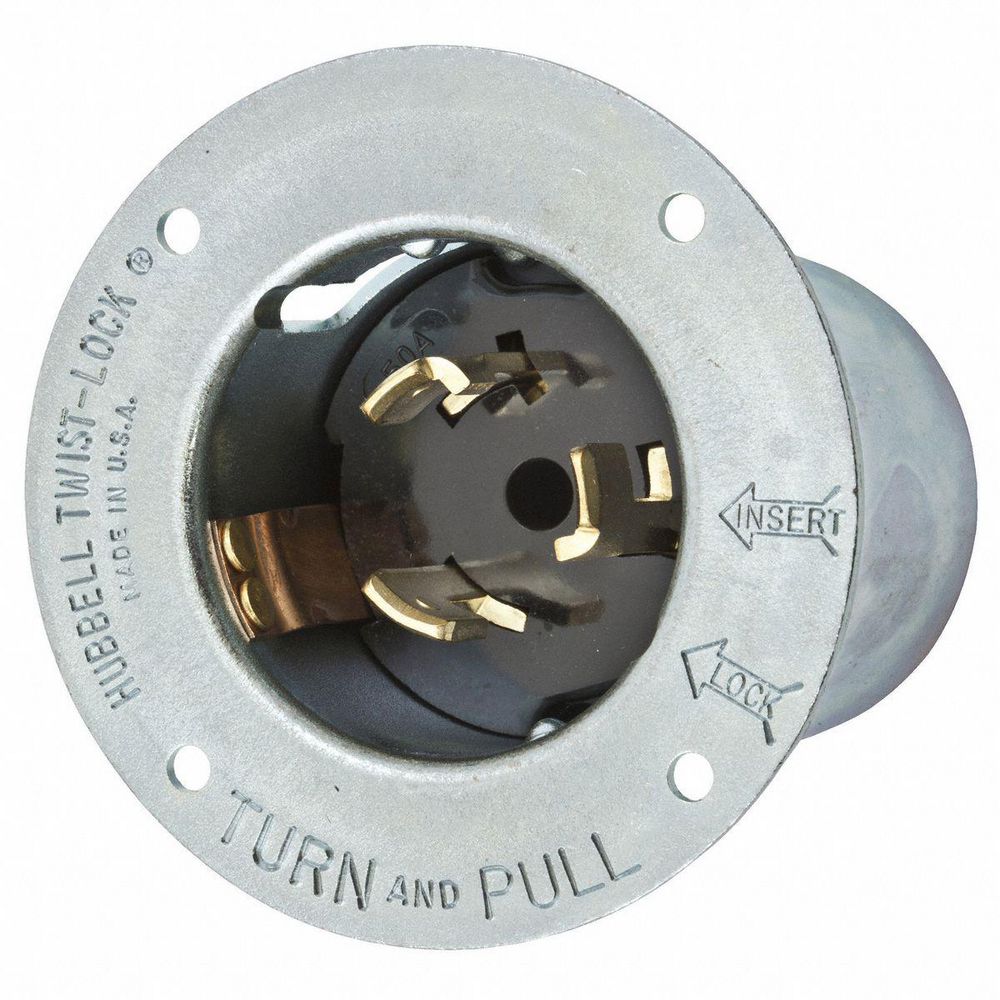

Hubbell Wiring Device-Kellems Black Flanged Locking Inlet, 50 Amps, 250 VAC Voltage, NEMA Configuration: Non-NEMA
Hover over image to magnify
#914501-2 | Pkg Qty: 1
$185.27 pkg | $185.27 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amperage
50 A
Minimum Wire Size
10 AWG
Amps
50 A
Mounting Type
Flush Mount
Blade Material
Brass
NEMA Plug Configuration
Non-NEMA
Body Material
Steel Casting
NEMA Rating
12, 4, 4X
Brand
HUBBELL WIRING DEVICE-KELLEMS
Number of Blades
4
Color Family
Silver
Number of Poles
3
Current Rating
50 A
Number of Wires
4
Grade
Industrial
Package Quantity
1
Grounding
Grounded
Phase
Three
Housing Color
Silver
Shipping Weight
.85 lb.
Housing Material
Steel, Zinc Plated
Shrouded
No
IP Rating
IP20
Standards
CSA Certified C22.2, UL 498
Item
Flanged Locking Inlet
Sub-Category
Inlets
Material
Zinc-Plated Steel
Type
50A
Material of Construction
Nylon
UL 94 Flammability Rating
V-0
Maximum Operating Temperature
75 °C
Voltage
250V AC
Maximum Wire Size
6 AWG
Voltage Rating
250V AC
Mfr. Part Number
CS8375
Wire Connection Type
Screw Terminals
Minimum Operating Temperature
-40 °C
Wiring Style
Standard
General
Face Plate Width
3.5 in.
Special Features
With Locking Cover
Flange Type
Flanged
Product Description
50A Locking Devices
- Hubbell® Twist-Lock®
- Box terminal with Allen-head threaded lug permits high clamping pressure on conductors without damaging the threads. Receptacles have chrome-plated brass nosepieces that cannot be distorted to mate with the wrong device. Connectors and plugs have a super-tough, ribbed-nylon housing for superior impact/crush resistance and secure gripping. Stainless steel shroud on plugs protects plug blades from damage.
Expertly Selected Product Pairings
Item Barcode
Flanged Inlet,250V,50A,3P,4W,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 4D208 | Flanged Inlet,250V, |
 | UNSPSC CODES | 39121406 | |
 | VMRS (ATA) CODES | 053-007-002 | Flanged Inlet,250V, |
