CHICAGO-LATROBE

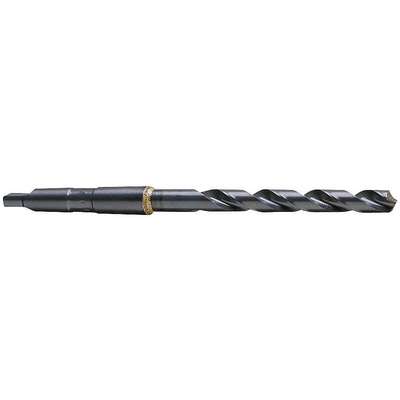

Chicago-Latrobe #2 Taper Shank Drill Bit, 11/16", High Speed Steel, Black Oxide, List Number 110

Hover over image to magnify
Taper Shank Drill,11/16,#2MT,
Taper Shank Drill,11/16,#2MT,
Double tap image to magnify
Taper Shank Drill,11/16,#2MT,
Taper Shank Drill,11/16,#2MT,

#914456-2Pkg Qty: 1

$80.63 pkg | $80.63 ea

In Stock

Shipping to 43085
Expected to arrive Tue. Mar 25.
|

Technical Specifications

Key Specifications
Brand
CHICAGO-LATROBE
Helix Angle
28 deg.
Cutting Direction
Right
Item
Taper Shank Drill Bit
Decimal Equivalent
11/16
List Number
110
Depth x Diameter Ratio
4xD
Maximum Drilling Depth
5-3/8 in.
Dimension Type
Fractional Inch
Mfr. Part Number
53144
Drill Bit Dimension Type
Fractional Inch
Morse Taper
#2
Drill Bit Finish
Black Oxide
Number of Flutes
2
Drill Bit Material
High Speed Steel
Overall Length
9-1/4 in.
Drill Bit Point Angle
118 deg.
Package Quantity
1
Drill Bit Size
11/16 in.
Point Type
Conventional Point
Drill Point Length
0.2065 in.
Series
110
Finish
Black Oxide
Shank Diameter
MT2
Flute Length
5-3/8 in.
Shank Length
3-7/8 in.
Flute Type
Spiral
Shipping Weight
.7 lb.
Grade
General Purpose
Spiral Direction
Right Hand
General
Application
For Alloy, Carbon And Tool Steels And Cast Iron
Drill Diameter Tolerance
+0.0000 in /-0.0012 in
Coolant Fed
Non-Coolant Through
Primary Material Application ISO Code
K, P
Drill Bit Grouping
Individual
Shank Type - Machining
Taper

Product Description

These drill bits have a black-oxide finish that retains lubricants to improve the bits' wear resistance and chip flow. Black-oxide bits should only be used for drilling ferrous metals. High-speed steel drill bits provide more flexibility and absorb more shock and vibration than cobalt and carbide drill bits, making them suitable for use in manual drilling machines and handheld power tools. They may leave a rough finish on the hole. These bits have spiral flutes that evacuate chips as the bits drill into a workpiece.

Documents

Drill Bits Overview

Item Barcode

9144562
Taper Shank Drill,11/16,#2MT,
