CHICAGO PNEUMATIC

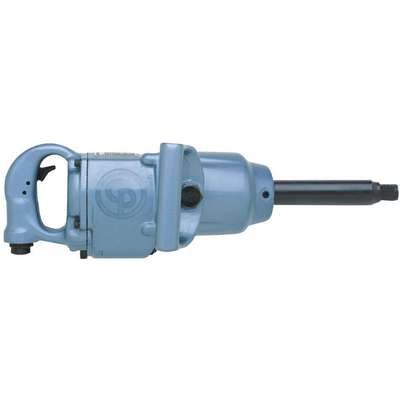

Chicago Pneumatic General Duty Air Impact Wrench, 1" Square Drive Size 150 to 900 ft.-lb.

Hover over image to magnify
Air Impact Wrench,1 In. Dr.,
Air Impact Wrench,1 In. Dr.,
Chicago Pneumatic General Duty Air Impact Wrench, 1" Square Drive Size 150 to 900 ft.-lb. Video

#914450-1 | Pkg Qty: 1

$1,535.44 pkg | $1,535.44 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Air Consumption
scfm
Housing
Aluminum Cast
Air Inlet
1/2 in.
Housing Material
Aluminum Cast
Air Inlet Size
1/2 in. NPT
Item
Air Impact Wrench
Air Tool Body Style
D-Handle
Maximum Bolt Capacity
1-1/4 in.
Air Tool Drive Size
1 in. Square
Maximum Torque
1400 ft.-lb.
Air Tool Retainer Type
Ring
Mfr. Part Number
CP797-6
Anvil
6 in. Extended
Minimum Hose Size
1/2 in.
Anvil Length
1.250 in.
Overall Length
22-1/4 in.
Avg CFM @ 15 Sec Run Time
10
Package Quantity
1
Blows per Minute
1080
Required Pressure
90 psi
Brand
CHICAGO PNEUMATIC
Retainer Type
O-Ring
CFM @ Full Load
40
Shipping Weight
34.85 lb.
Duty
General Duty
Square Drive Size
1 in.
Free Speed
4200 RPM
Style
D-Handle
Handle
D-Handle
Tool Weight
29-3/4 lb.
Handle Material
Aluminum Cast
Torque Range
150 to 1400 ft.-lb.
Handle Type
D-Handle
Type
General Duty, Extended Anvil
General
Air Pressure
90 psi
Max. Air Pressure
90 psi
Extended Anvil Length
6 in
Min. Air Pressure
90 psi
Features
Classic Tool, Durable, Industry Leader, Workhorse for Truck Tire Industry, Ideal for High Volume Work, Rocking Dog Clutch, Teasing Throttle, High Performance

Product Description

These air-powered impact wrenches have an extended length anvil and a D-handle to increase stability. The extended length anvil reaches recessed spaces like those found on large truck wheels with recessed hubs. D-handle impact wrenches are large tools that are meant to be held with both hands. They place the user's hands directly in line with the tool's body to allow maximum control and pressure application. Tools with an additional side or top handle provide additional leverage during heavy-duty applications.
