HUBBELL WIRING DEVICE-KELLEMS

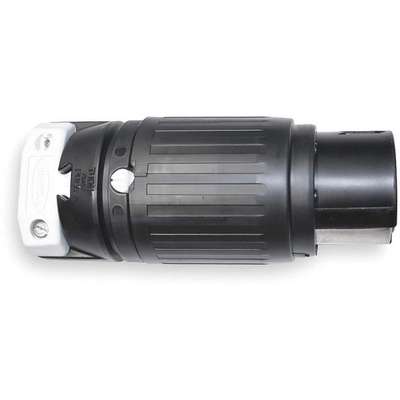

Hubbell Wiring Device-Kellems 50 Amp Industrial Grade Locking Connector, Non-NEMA, 50A NEMA Configuration, Black/White

Hover over image to magnify
Locking Connector,250VAC,50A,
PI_Asset_1983496
Locking Connector,250VAC,50A,
PI_Asset_1983496
Double tap image to magnify
Locking Connector,250VAC,50A,
3D330_1
Locking Connector,250VAC,50A,
3D330_1

#914431-6Pkg Qty: 1

$230.79 pkg | $230.79 ea

In Stock

Shipping to 43085
Expected to arrive Tue. Mar 25.
|

Technical Specifications

Key Specifications
Amperage
50 A
Mfr. Part Number
CS8264C
Amps
50 A
Minimum Operating Temperature
-40 °C
Antimicrobial
No
Minimum Wire Size
10 AWG
Brand
HUBBELL WIRING DEVICE-KELLEMS
NEMA Plug Configuration
50A, Non-NEMA
Cap Type
No Cap or Cover
Number of Poles
2
Color Family
Black / White
Number of Wires
3
Connection Orientation
Straight
Outside Diameter
2.563 in.
Contact Material
Brass
Overall Length
6.5 in.
Cord Size
0.750 in to 1.125 in
Package Quantity
1
Corrosion Resistant
No
Phase
Single
Current Rating
50 A
Power Indicator
No
Description
Insulgrip, Grounding, Standard, Non-NEMA
Shipping Weight
1.05 lb.
For Environment
Dry
Shrouded
No
Grade
Industrial/Commercial
Standards
CSA Certified C22.2 No. 42, UL 498
Grounding
Grounded
Sub-Category
Connectors
Housing Material
Nylon
Type
50A
IP Rating
IP20
UL 94 Flammability Rating
HB
Item
Locking Connector
Voltage
250VAC
Material
Super Tough Nylon
Voltage Rating
250V AC
Material of Construction
Super Tough Nylon
Wire Connection Type
Screw Terminals
Maximum Operating Temperature
75 °C
Wiring Style
Standard
Maximum Wire Size
6 AWG
General
Amps - Plugs and Receptacles
50
Grade - Plugs and Receptacles
Industrial

Product Description

This locking connector is designed for use with electrical cables, available separately.
