LINCOLN ELECTRIC

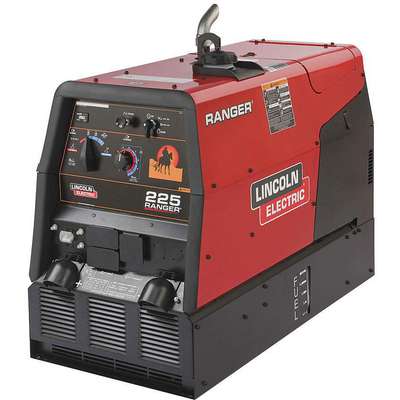

Lincoln Electric, Ranger 225 Gas Powered Engine Driven Welder with Kohler Engine
Hover over image to magnify
#914390-1 | Pkg Qty: 1
$7,538.56 pkg | $7,538.56 ea
This item requires special shipping, additional charges may apply.
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amperage Range
50-225 A
Mfr. Part Number
K2857-1
Brand
LINCOLN ELECTRIC
Package Quantity
1
Continuous Auxiliary Power
10,000 W
Peak Auxiliary Power
12,000 W
Depth
56 in.
Phase
Three
Engine Brand
Kubota
Series
Big Blue 400 Pro
Fuel Type
Diesel
Shipping Weight
563 lb.
Height
32 in.
Start Type
Electric
Horsepower
20 HP
Width
26-1/4 in.
Item
Engine Driven Welder
General
Auxiliary Power (1 Phase)
9.0 kW and 10.5 kW Surge
Rated Output CC/DC
225A DC CC @ 25V, 40%
Engine Model
Kohler CH730
Rated Output CV/DC
200A DC CV/20V/100%
Features
23 HP Kohler Gasoline Engine, 12 Gallon Fuel Tank, Totally Enclosed Case, 76.4 dBA sound level at 23 ft
Rated Output at Duty Cycle (Stick)
200 A @ 100%, 210 A @ 100%, 225 A @ 40%
Fuel Tank Capacity Range
10 gal – 20 gal
Stick Welding Maximum Output Current
225 A
Generator Outlet Type
14-50R, 5-20R
Stick Welding Minimum Output Current
50 A
HP
23 hp
Stick Welding Output @ Duty Cycle
200 A @ 20 V, 100%, 210 A @ 25 V, 100%, 225 A @ 25 V, 40%
Horsepower Range
15 hp – 30 hp
TIG Welding Maximum Output Current
225 A
MIG Welding Maximum Output Current
225 A
TIG Welding Minimum Output Current
50 A
MIG Welding Minimum Output Current
50 A
TIG Welding Output @ Duty Cycle
200 A @ 20 V, 100%, 210 A @ 25 V, 100%, 225 A @ 25 V, 40%
MIG Welding Output @ Duty Cycle
200 A @ 20 V, 100%, 210 A @ 25 V, 100%, 225 A @ 25 V, 40%
Welder Model Type
Base Model
Max. Amperage Range (Stick)
150 A – 300 A
Welder Type
Base Model
Open Circuit Voltage
80 V
Welding Mode
CC/CV
Product Description
The Ranger® can be used with a variety of DC stick electrode types. It is MIG, flux-cored, and TIG capable with accessories, sold separately. It features a 12-gal. fuel tank and 23-HP Kohler engine.
Expertly Selected Product Pairings
Item Barcode
Welder Generators,CC/Dc 225A
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 5JPH7 | Welder Generators, |
 | UNSPSC CODES | 23271709 | |
 | VMRS (ATA) CODES | 053-006-017 | Welder Generators, |
