LINCOLN ELECTRIC

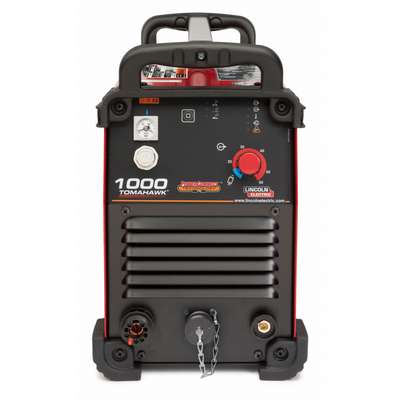

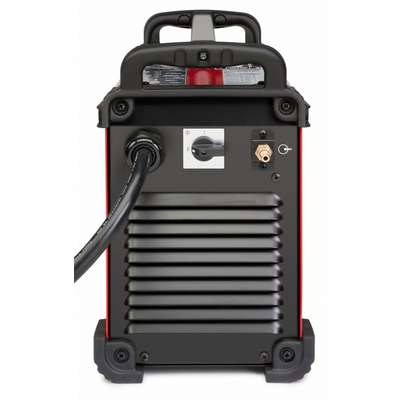

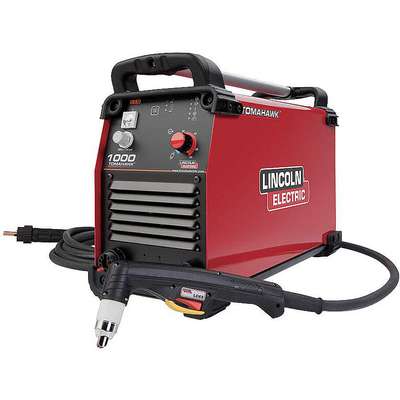

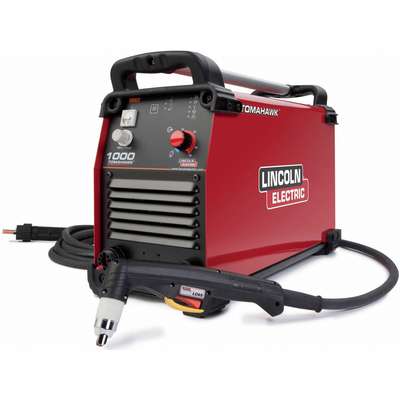

Lincoln Electric Plasma Cutter, Tomahawk 1000 Air Series, Input Voltage: 208/575 V
Hover over image to magnify
#914382-4 | Pkg Qty: 1
$4,882.01 pkg | $4,882.01 ea
This item requires special shipping, additional charges may apply.
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
LINCOLN ELECTRIC
Input Voltage
208 VAC, 575 VAC
Cable Length
25 ft.
Item
Plasma Cutter
Cutting Capacity
1-1/4 in.
Mfr. Part Number
K2808-1
Design
Inverter
OCV
270VCD
Duty Cycle
1
PSI
80
For Material Type
Aluminum, Brass, Copper, Mild Steel, Stainless Steel
Package Quantity
1
For Maximum Material Thickness
1-1/2 in.
Rated Output
1/3 A
For Minimum Material Thickness
3/4 in.
Series
Tomahawk 1000 Air
Input
37.8 A
Shipping Weight
76.4 lb.
General
Application
Metal Cutting
Open Circuit Voltage
270 V DC
Cutting Cable Length
25 ft
Overall Depth (In.)
22.1 in
Cutting Capacity (In.)
1 1/4 in
Overall Height (In.)
15.2 in
Cutting Configuration
Plasma Cutting
Overall Width (In.)
8 1/2 in
Effective Input Current
37.8 A @ 208 V (Single-Phase), 37.8 A @ 575 V (Three-Phase)
Plasma Cutter Model
K2808-1
Ground Cord Length
25 ft
Plasma Cutter Type
Plasma Cutter
Includes
LC65 Hand Torch with 25 ft Cable, Work Clamp & Cable
Plasma Cutting Minimum Output Current
20 A
Input (Amps)
37.8A
Plasma Cutting Output @ Duty Cycle
40 A @ 96 V, 100%, 60 A @ 104 V, 50%
Input Voltage (Nominal)
208V
Plasma Gas Type
Air
Max. Amperage Range
50 A — 100 A
Plasma Torch
25 ft Handheld
Max. Input Current
37.8 A @ 208 V (Single-Phase), 37.8 A @ 575 V (Three-Phase)
Plasma Torch Type
Handheld
Maximum Output Current
60 A
Rated Output at Duty Cycle
40 A @ 100%
Maximum Pressure - Air Compressor
87 psi
Required Air Flow
4.6 cfm
Product Description
Continuous Output Control, Engine Drive Compatible, Front Panel Purge Control, Touch Start System
