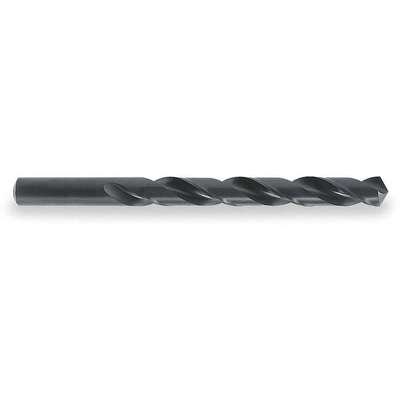

Cle-Line 31/64", High Speed Steel, Jobber Drill Bit, 5-7/8" Overall Length, Black Oxide Drill Bit Finish

Hover over image to magnify
Jobber Bit,31/64In,High Speed
Jobber Bit,31/64In,High Speed
Cle-Line 31/64", High Speed Steel, Jobber Drill Bit, 5-7/8" Overall Length, Black Oxide Drill Bit Finish Video
Cle-Line 31/64", High Speed Steel, Jobber Drill Bit, 5-7/8" Overall Length, Black Oxide Drill Bit Finish Video

#914378-6 | Pkg Qty: 1

$10.89 pkg | $10.89 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
CLE-LINE
Item
Jobber Length Drill Bit
Coolant Through
Non-Coolant Through
Jobber Length Basic Material
High Speed Steel
Cutting Direction
Right
List Number
1899
Decimal Equivalent
0.4844
Maximum Drilling Depth
1-15/16 in.
Depth x Diameter Ratio
4xD
Mfr. Part Number
C22755
Dimension Type
Fractional Inch
Number of Flutes
2
Drill Bit Dimension Type
Fractional Inch
Number of Pieces
1
Drill Bit Finish
Black Oxide
Overall Length
5-7/8 in.
Drill Bit Material
High Speed Steel
Package Quantity
1
Drill Bit Point Angle
118 deg.
Point Angle
118 deg.
Drill Bit Size
31/64 in.
Point Type
Conventional Point
Drill Point Length
0.1455 in.
Series
1899
Finish
Black Oxide
Shank Diameter
31/64 in.
Flute Length
4-3/8 in.
Shank Length
1-1/2 in.
Flute Type
Spiral
Shank Type
Straight
Grade
General Purpose
Shipping Weight
.15 lb.
Helix Angle
21 deg. to 34 deg.
Spiral Direction
Right Hand
General
Application
For Carbon Steel And Cast Iron
Material - Machining
High Speed Steel
Coolant Fed
Non-Coolant Through
Material Grade - Machining
General Purpose
Depth:Dia. Ratio
4xD
Measurement System
Fractional Inch
Drill Bit Grouping
Individual
Primary Material Application ISO Code
K, N, P
Drill Bit Point Type
Conventional Point
Shank Dia.
31/64 in
Drill Diameter Tolerance
+0.0000 in /-0.0010 in
Shank Type - Machining
Straight
Drill Length Class
Jobber Length
Standards
ASME B94.11M
Finish - Machining
Black Oxide

Product Description

These drill bits come in standard sizes expressed in fractional inches. They have a black-oxide finish that retains lubricants to improve the bits' wear resistance and chip flow. Black-oxide bits should only be used for drilling ferrous metals. The bits' spiral flutes evacuate chips as the bits drill into a workpiece. These bits have a straight shank that installs into a drill chuck or similar toolholder.
