KABA

Electronic Keyless Lock, 2-3/4" Backset, Cylindrical, Satin Chrome, 1/2" Latch Length

Hover over image to magnify
Programmable Lockset,100 User
Programmable Lockset,100 User

#914374-3 | Pkg Qty: 1

$663.65 pkg | $663.65 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
ADA Compliance
Yes
Latch Type
1/2 in.
Battery Life
Up to 100,000 Cycles
Lock Style
Solid Cast
Brand
KABA
Mfr. Part Number
E2031BLL62641
Door Plate Thickness
1-3/8 in to 2-1/2 in.
Mounting Style
Cylindrical
Finish
Satin Chrome
Number of Keys
12
Fire Rating
3 hr.
Operating Temperature Range
-31 deg. F to 151 deg. F
Function
Entry with Key Override
Outside Depth
2-3/16 in.
Grade
1
Outside Height
8-15/16 in.
Hand
Nonhanded
Outside Width
3-5/16 in.
Handle Type
Lever
Package Quantity
1
Inside Depth
2-1/4 in.
Power Source
(3) AA Batteries
Inside Height
8-7/8 in.
Series
E2000
Inside Width
3-1/4 in.
Shipping Weight
8.3 lb.
Item
Electronic Keyless Lock
Weather Resistant
Yes
General
ADA Compliant
Yes
Keypad Material
Solid Metal
Access Method
Keypad
Latch Front Size
1/2 in
Backset
2-3/4 in.
Latch Length
1/2 in
Door Thickness
1-3/8 in to 2-1/2 in
Lock Material
Solid Cast
Electrical/Mechanical
Electrical
Max. User Codes
100
Event Audit Trail
1000
Operating Temp. Range
-31° to 151°F
Includes
Installation Screws
Standards
ANSI/BHMA
Key Override Options
Best and Equivalents
Timed Entry Allowance
2 to 20 sec
Keypad
12 Button
Timed Entry Allowance (Sec.)
2 to 20

Product Description

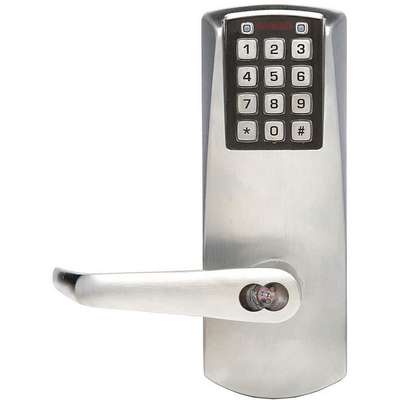

The E-PLEX® by KABA® 2000 Series electronic push-button lock allows keyless access control with 100 individual user codes. Eliminates the problems and costs associated with issuing, controlling, and collecting keys and cards. Classroom/storeroom function provides exterior access by PIN code, but allows free egress. No wiring to install—battery operated. Nonhanded, field-reversible lock has a vandal-resistant, all-metal keypad and a solid cast exterior housing and lever. Features audible low battery alert, timed relock, codes for 1-time use, antitamper function (invalid entry), and total user lockout codes. SFIC model accepts Best® core and equivalents. Includes lock assembly, 3AA batteries (100,000 cycles), installation manual, template, reference guide, operations manual, and hardware.
