PHOENIX

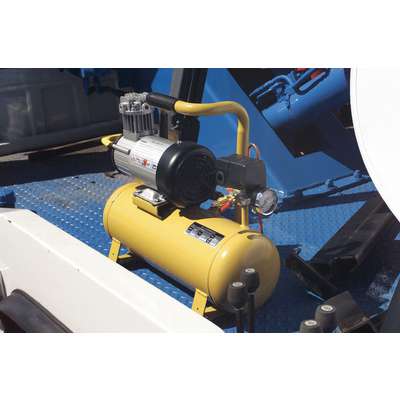

3/4 HP, 12VDC, 3 gal. Portable Electric Oil-Free Air Compressor, 120 psi
Hover over image to magnify
#914365-4 | Pkg Qty: 1
$666.14 pkg | $666.14 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
(F)NPT Outlet
1/4 in.
Overall Length
21-1/8 in.
Air Consumption
scfm
Overall Width
8-1/2 in.
Brand
PHOENIX
Package Quantity
1
Cylinder
Steel
Product Weight
38 lb.
Cylinder Material
Steel
Shipping Weight
41 lb.
Free Air CFM @ 90 PSI
1.7
Tank Size
3.0 gal.
Horsepower
3/4
Tank Style
Hot Dog
Input Voltage
12 VDC
Tank Type
Horizontal
Item
Portable Electric Oil-Free Air Compressor
Type
Electric
Lubrication Type
Oil Free
Voltage
12 VDC
Maximum Pressure
120 psi
Warranty
2ACD2
Mfr. Part Number
AC12V3
Width
8-1/2 in.
Overall Height
18 in.
General
Air Tank Size
3 gal
Max. Pressure - Air Compressor
120 psi
Air Tank Style
Hot Dog
Outlet Gender
Female
Compressor Lubrication Type
Oil Free
Output Power
0.75 hp
Free Air CFM @ 90 PSI - Air Compressor
1.7
Sound Level Range
Quiet (less than 70 dBA)
Free Air Flow Rate
1.7 cfm
Standards
UL
HP - Air Compressor
0.75 hp
Tank Size - Air Compressor
3.0 gal
Input Voltage - Air Compressor
12V DC
Tank Style - Air Compressor
Hot Dog
Lubrication Type - Air compressor
Oil Free
Product Description
Portable Air Compressor, Lubrication Type Oil Free, Air Tank Style Hot Dog, Output Power 0.75 hp, Free Air Flow Rate 1.7 cfm, Maximum Operating Pressure 120 psi, Air Tank Size 3 gal, Input Voltage 12V DC, Current Rating 45 A, Sound Level 60 dBA, Weight 38 lb, Pump Type Piston, Motor Type Universal
Expertly Selected Product Pairings
Item Barcode
Air Compressor,0.75 Hp,12VDCV,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 3VTH1 | Air Compressor,0. |
 | UNSPSC CODES | 40151601 | |
 | VMRS (ATA) CODES | 053-006-009 | Air Compressor,0. |
