MACROMATIC

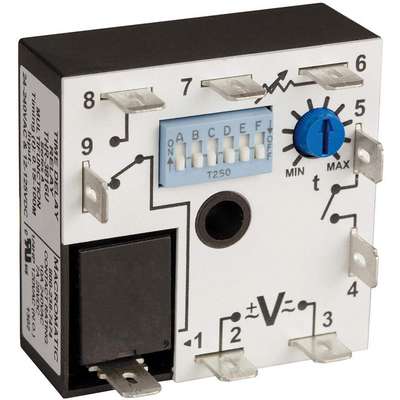

Macromatic Multi-Function Encapsulated Timing Relay, Function: On Delay, Off Delay, Interval, Single Shot, Stat

Hover over image to magnify
Encapsulated Timer Rly,100min,
PI_Asset_972676
Encapsulated Timer Rly,100min,
PI_Asset_972676
Macromatic Multi-Function Encapsulated Timing Relay, Function: On Delay, Off Delay, Interval, Single Shot, Stat Video

#914319-2 | Pkg Qty: 1

$65.87 pkg | $65.87 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
AC Contact Rating
10 A @ 240 V
Maximum Time Setting
100 min.
Adjustment Method
Dip Switch
Mfr. Part Number
THR-3816U
Body Depth
2 in.
Minimum Time Setting
0.1 sec.
Body Height
0.79 in.
Mounting
Surface
Body Width
2 in.
Number of Contacts
1
Brand
MACROMATIC
Number of Functions
4
Coil VA Rating
2
Number of Pins
9
Coil Volts
24 to 240 VAC/12 to 125 VDC
Operating Functions
124
Contact Amp Rating
10
Output
Relay
Contact Form
SPDT
Overall Height
1.14 in.
Contact Material
Silver Nickel
Package Quantity
1
DC Contact Rating
7 A @ 28 V
Pins
9
Function
On Delay, Off Delay, Interval, Single Shot
Resistive Contact Amp Rating
10A
HP @ 120 V
2022-01-04
Shipping Weight
.19 lb.
Hz
50/60
Status Indicator
None
Inductive Contact Amp Rating
10
Timing Range
0.10 sec. to 100 min.
Input Voltage
24 to 240 VAC/12 to 125 VDC
Type
Encapsulated
Input or Control Voltage
24 to 240 VAC, 12 to 125 VDC
Type of Output
Relay
Item
Multi-Function Encapsulated Timing Relay
General
AC Contact Rating - Relay
10A @ 240V
Hz - Electrical
50 Hz, 60 Hz
Adjustment Method - Timer
Dip Switch
Max. Time Setting - Timer
1 hr 40 sec
Body Depth - Relay
2.0 in
Min. Time Setting - Timer
0.1 sec
Body Height - Relay
0.79 in
Mounting - Relay
Surface
Body Width - Relay
2.0 in
Number of Pins - Relay
9
Contact Form - Relay
SPDT
Overall Height - Relay
1.14 in
DC Contact Rating - Relay
7A @ 28V
Standards
cURus
Function - Timing Relay
Interval, Off Delay, On Delay, One Shot
Timer Range
0.10 sec. to 100 min.
HP @ 120V
1/4

Product Description

The THR-3816U Time Delay Relay features a choice of four functions: On Delay, Interval On, Off Delay and Single Shot. Four timing ranges covering 0.1 second to 100 minutes, with each range adjustable onboard with a potentiometer or externally with a remote potentiometer. All set up is done with DIP switches for ease of use. A universal input voltage of 24-240V AC and 12-125V DC adds to the ultimate flexibility of the product. Encapsulated for protection against harsh elements. Can handle most pilot duty and fractional HP loads.
