SPEEDAIRE

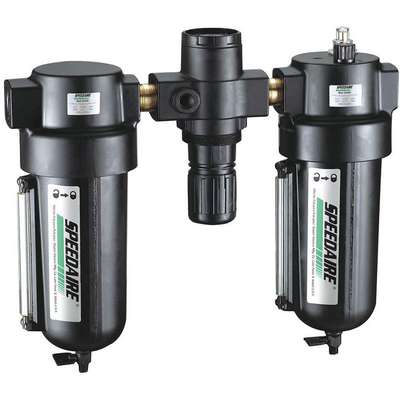

3/4" NPT Filter/Regulator/Lubricator with 5 to 150 psi Adjustment Range

Hover over image to magnify
Filter/Regulator/Lubricator,5
PI_Asset_1363210
Filter/Regulator/Lubricator,5
PI_Asset_1363210

#914278-9 | Pkg Qty: 1

$423.56 pkg | $423.56 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Adjustment
5 to 150 psi
Maximum Temperature (Deg. F)
175
Air Consumption
scfm
Mfr. Part Number
4ZM02
Bowl Material
Metal with Sight Glass
NPT
3/4 in.
Brand
SPEEDAIRE
Number of Pieces
3
Drain Type
Manual
Overall Height
12.45 in.
Filter Rating
5 micron
Overall Width
14-3/4 in.
Item
Filter/Regulator/Lubricator
Package Quantity
1
Maximum Flow
160 cfm
Pipe Size
3/4 in. NPT
Maximum Flow (CFM)
160 CFM
Shipping Weight
11 lb.
Maximum Pressure
250 psi
Type
3 Piece Combination
Maximum Temperature
175 deg. F
Width
14-3/4 in.
General
Adjustment Location
Top
Gauge Port Size
1/4 in NPT
Adjustment Mechanism
Knob
Lubricator Bowl Capacity
32 oz
Adjustment Mechanism Material
Reinforced Nylon
Lubricator Bowl Guard Included
Yes
Adjustment Range - Air Treatment
5 to 150 psi
Lubricator Bowl Guard Material
Aluminum
Air Flow Direction
Left to Right
Lubricator Bowl Material
Aluminum
Air Inlet Gender
Female
Lubricator Type
Mist
Air Inlet Type
NPT
Lubricator Type Included
Mist
Air Outlet Gender
Female
Max. Flow - Air Treatment
160 cfm
Air Outlet Size
3/4 in
Max. Flow Range - Air Treatment
151 to 200 cfm
Air Outlet Type
NPT
Max. Incoming Pressure - Air Treatment
250 psi
Bowl Material - Air Treatment
Metal with Sight Glass
Max. Pipe Run - Air Treatment
6 m
Bowl Size - Air Treatment
32.0 oz
Maximum Regulated Pressure
1 MPa
Connection Size - Air Treatment
3/4 in NPT
Minimum Operating Pressure
0.05 MPa
Differential Pressure Indicator Included
Yes
Minimum Regulated Pressure
0.05 MPa
Drain Part Compatibility
114X35
Modular Connection
No Modular Connection
Filter Bowl Capacity
32 oz
Pressure Gauge Included
Yes
Filter Bowl Guard Included
Yes
Pressure Gauge Port Gender
Female
Filter Bowl Guard Material
Aluminum
Pressure Gauge Port Size
1/4 in
Filter Bowl Material
Metal
Pressure Gauge Port Type
NPT
Filter Element Material
Bronze
Recommended Lubricant
ISO VG 32
Filter Rating - Air Treatment
5 micron
Regulator Type
Relieving
For Fluid Type
Compressed Air
Sight Dome Included
Yes
For Removal Of
Oil, Oil Odor, Oil Vapor, Particles, Water
Sight Gauge Included
Yes
For Substance Type
Air
Size - Air Treatment
Standard

Product Description

This 3-pc. unit combines filter, regulator, and Mist lubricator. Modular connector allows easy removal and swap out. Some assembly required. For filter, the CFM is based on 100 psig inlet and 5 psig pressure drop. For regulator, the CFM flow is measured with 100 psig inlet adjusted to a set pressure of 90 psig (while increasing flow) and a 15 psig drop. For lubricator, the CFM is based on 100 psig inlet and 5 psig pressure drop.
