REELCRAFT

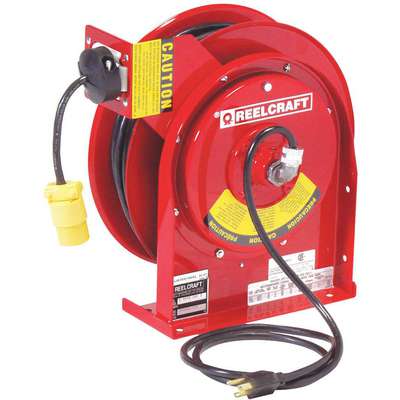

Reelcraft 45 ft. Retractable Cord Reel; Indistrial Grade; 120 VAC; Red Reel Color

Hover over image to magnify
Cord Reel,45 Ft,12/3,Sjeoow,Red
PI_Asset_969757
Cord Reel,45 Ft,12/3,Sjeoow,Red
PI_Asset_969757
Reelcraft 45 ft. Retractable Cord Reel; Indistrial Grade; 120 VAC; Red Reel Color Video
Double tap image to magnify
Cord Reel,45 Ft,12/3,Sjeoow,Red
9201423_1
Cord Reel,45 Ft,12/3,Sjeoow,Red
9201423_1
RoOYEWTcFQA

#914276-6Pkg Qty: 1

$795.42 pkg | $795.42 ea

In Stock

Shipping to 43085
Expected to arrive Mon. Mar 31.
|

Technical Specifications

Key Specifications
Brand
REELCRAFT
NEMA Configuration
5-15R
Cord Color
Black
NEMA Connector
5-15R
Cord Ending
5-15R
NEMA Plug Configuration
5-15R
Cord Ending NEMA Configuration
5-15R
Number of Conductors
3
Cord Included
Yes
Number of Outlets
1
Cord Length
45 ft.
Overall Depth
9-3/8 in.
Cord Type
SJEOW
Overall Height
13-1/4 in.
Depth
9-3/8 in.
Overall Width
12-5/8 in.
Description/Special Features
Single Connector
Package Quantity
1
Enclosed Reel
No
Reel Color
Red
Enclosure Rating
Not Rated
Reel Material
Steel
Feeder Cord Ending
Grounding Plug
Reel Mounting
Bench, Ceiling, Wall
Feeder Cord Ending NEMA Configuration
5-15P
Shipping Weight
27.65 lb.
Grade
Industrial
Slip Ring Rating
15
Height
13-1/4 in.
Type
Industrial, Automatic Retracting
Indoor/Outdoor
Indoor
Voltage
120 VAC
Item
Retractable Cord Reel
Watts
1875 W
Maximum Amps
15
Width
12-5/8 in.
Mfr. Part Number
L 4545 123 3
Wire Size
12 AWG
NEC Cord Designation
SJEOOW
General
Feeder Cord Ending Configuration
NEMA 5-15P
Standards
UL, CSA
Gauge/Conductor - Ext. Cords and Outlet Strips
12/3
Tension Method
Ratchet Lock
Includes Cord
Yes
Voltage - Ext. Cords and Outlet Strips
120VAC
Max. Amps - Ext. Cords and Outlet Strips
15.0
Winding Method
Spring Retraction
Retractable Cord Ending Configuration
NEMA 5-15R

Product Description

Self-retracting cord reels have a spring mechanism that automatically winds the cord back on the reel, making them easier to use than hand-winding cord reels. A stop, or ratchet, holds the cord at the desired length after it's pulled out for use. A quick tug on the cord disengages the stop, causing the spring to fully retract the cord. These reels provide access and storage of extension cords while protecting the cord from wear, tangling, and kinking.

Standard cord reels are spools that hold extension cords to provide access and storage while protecting them from tangling, kinking, and other damage. The cord can be extended to exactly the length needed to power equipment located at a distance from a power source. Self-retracting and motor-driven cord reels automatically wind extended cord back on the reel, while hand-winding cord reels have a handle or knob for winding the cord manually. These cords can be mounted out of the way in a central location, such as on a wall or ceiling, to keep a workspace organized and help reduce tripping hazards. They are commonly used in retail, commercial, and manufacturing applications, including pressure washing, landscaping and ground maintenance, and service garages.
